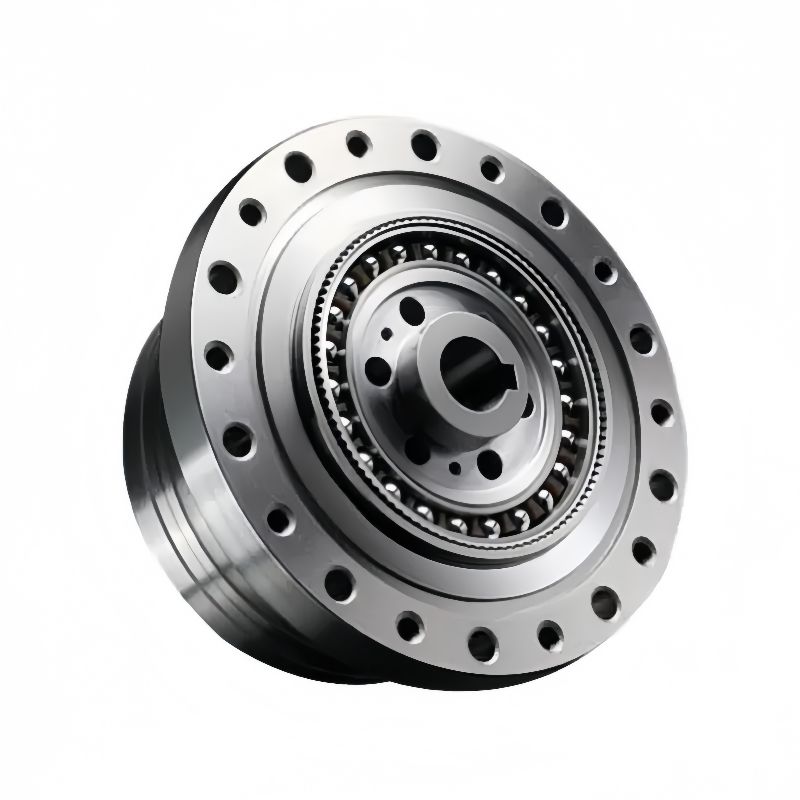

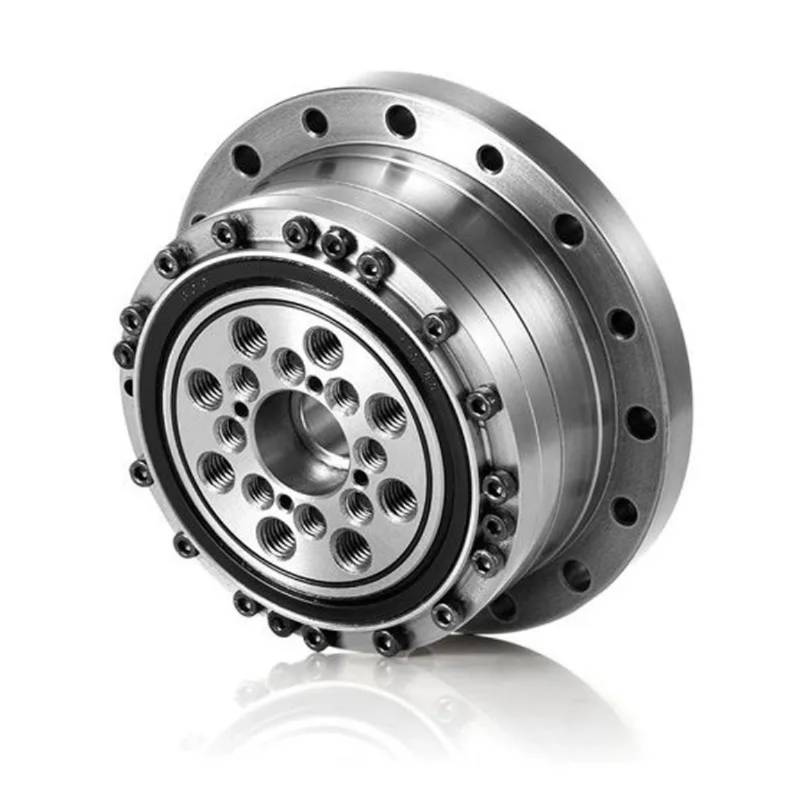

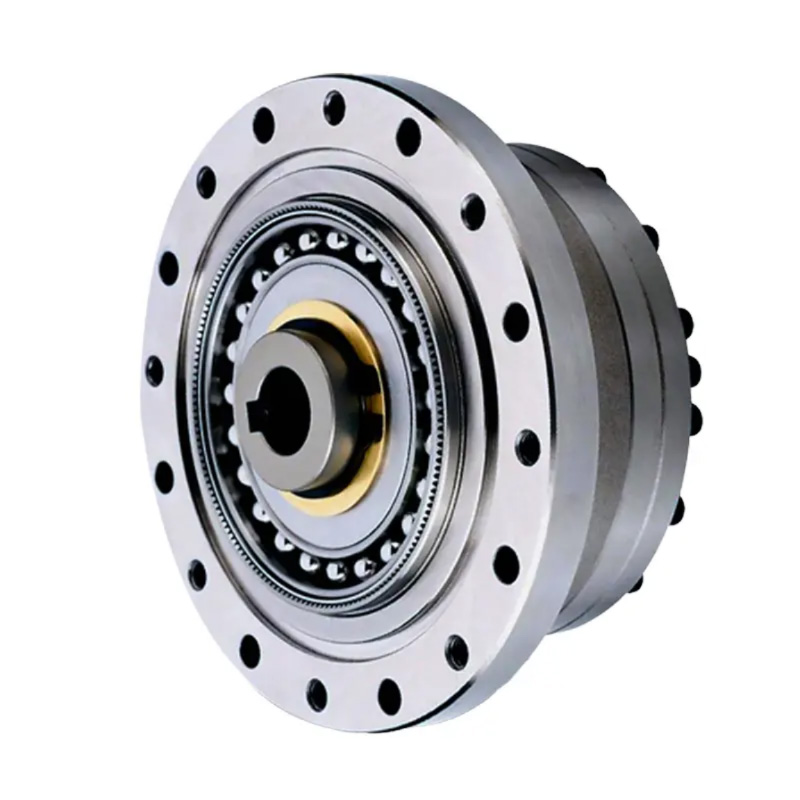

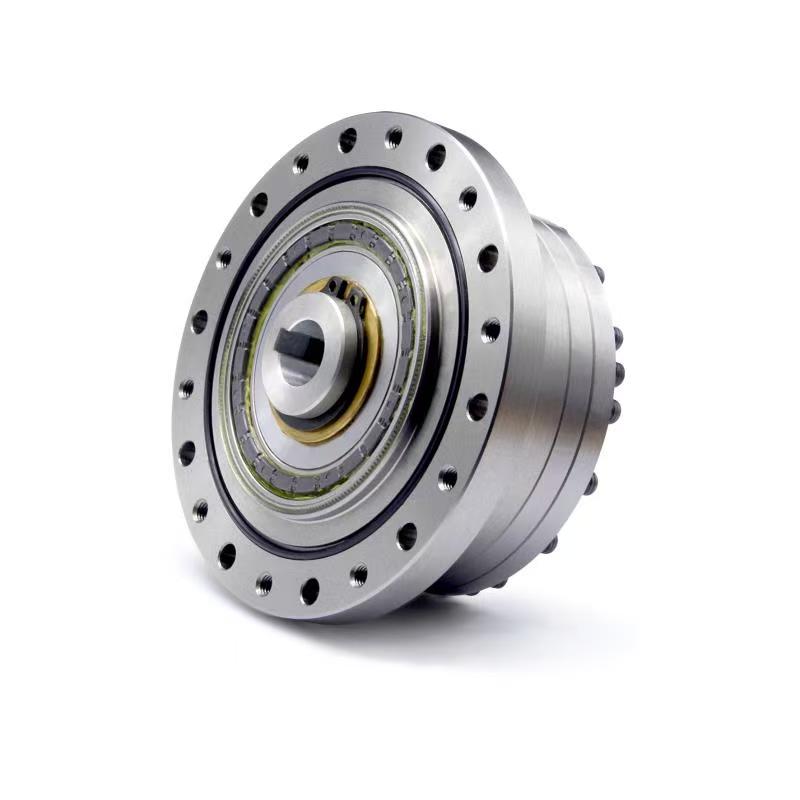

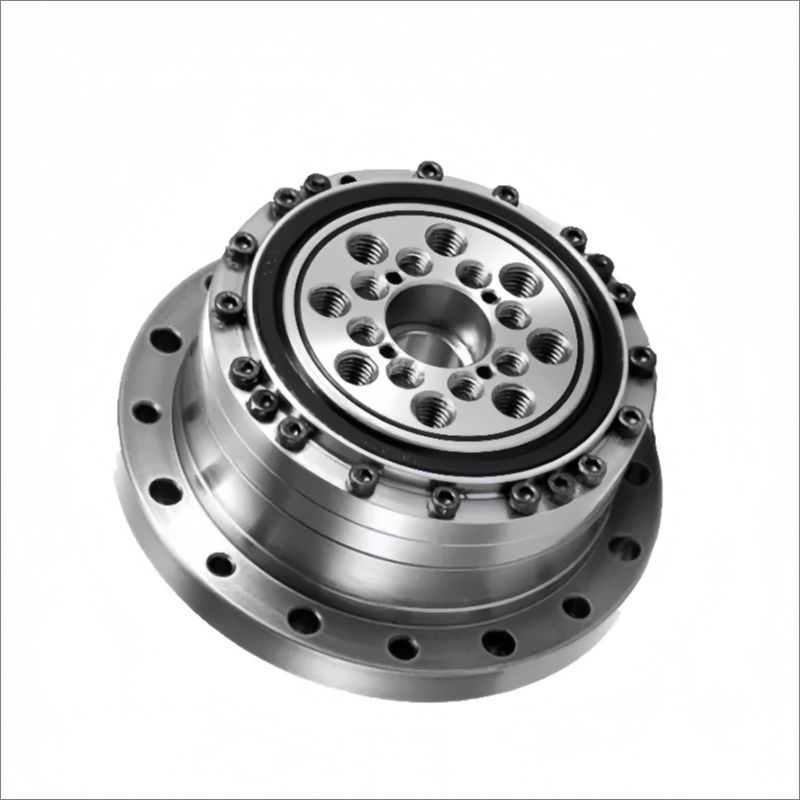

Harmonic Drive PCSG-II

Name: Harmonic Drive PCSG-II
Rating: 4.2 (73 reviews)

Frame size

The PCSG-I Series features a combined-type cup-style flexspline with a standard cylindrical structure. Its input and output bearings are coaxially aligned, ensuring high precision and smooth torque transmission. The input shaft connects to the wave generator’s inner bore via a cross bearing and is secured with a flat key for reliable performance.This high-torque version delivers a 30% increase in torque capacity and a 40% longer service life compared to our standard series. The housing is designed with advanced lightweight materials, resulting in a 30% reduction in weight compared to all-steel designs. This improvement enhances heat dissipation, reduces vibration, and supports higher operational efficiency.

Features

Compact and Simplified Design

High Torque Capacity

High Torsional Rigidity

Zero Backlash

Superior Positioning and Rotational Accuracy

Coaxial Input and Output

Lightweight and Efficient Heat Dissipation

Extended Service Life & Enhanced Reliability

Type	Speed ratio	Rated torque at input 2000r/min		Allowable peak torque when starting and stopping		The allowable maximum value of the average load torque		The maximum allowable torque in an instant		Maximum allowable input rotation speed (Grease lubrication)	Average allowable input speed (Grease lubrication)	Backlash	Designed service life
Type	Speed ratio	Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	Hour
14	50	6.7	0.7	22	2.2	8.6	0.9	44	4.4	10000	6500	≤20	15000
	80	9.7	1.0	29	2.9	13.7	1.4	58	5.8
	100	9.7	1.0	35	3.5	14	1.4	67	6.7
17	50	20	2.0	43	4.3	33	3.3	88	8.8	7500	5600	≤20	20000
	80	27.8	2.8	54	5.4	34	3.4	110	11.0
	100	30	3.0	66	6.6	49	4.9	135	13.5
	120	30	3.0	66	6.6	49	4.9	107	10.7
20	50	32.5	3.3	72	7.2	44	4.4	127	12.7	7000	4800	≤20	20000
	80	43	4.3	93	9.3	59	5.9	161	16.1
	100	51	5.1	105	10.5	63	6.3	188	18.8
	120	51	5.1	111	11.1	63	6.3	188	18.8
	160	51	5.1	117	11.7	63	6.3	188	18.8
25	50	49	4.9	123	12.3	69	6.9	234	23.4	5600	4000	≤20	20000
	80	79	7.9	171	17.1	109	10.9	320	32.0
	100	85	8.5	199	19.9	136	13.6	360	36.0
	120	85	8.5	212	21.2	136	13.6	385	38.5
	160	85	8.5	223	22.3	136	13.6	398	39.8
32	50	96	9.6	273	27.3	136	13.6	482	48.2	5600	3000	≤20	20000
	80	146	14.6	376	37.6	206	20.6	702	70.2
	100	171	17.1	416	41.6	269	26.9	807	80.7
	120	171	17.1	440	44.0	269	26.9	855	85.5
	160	171	17.1	463	46.3	269	26.9	855	85.5

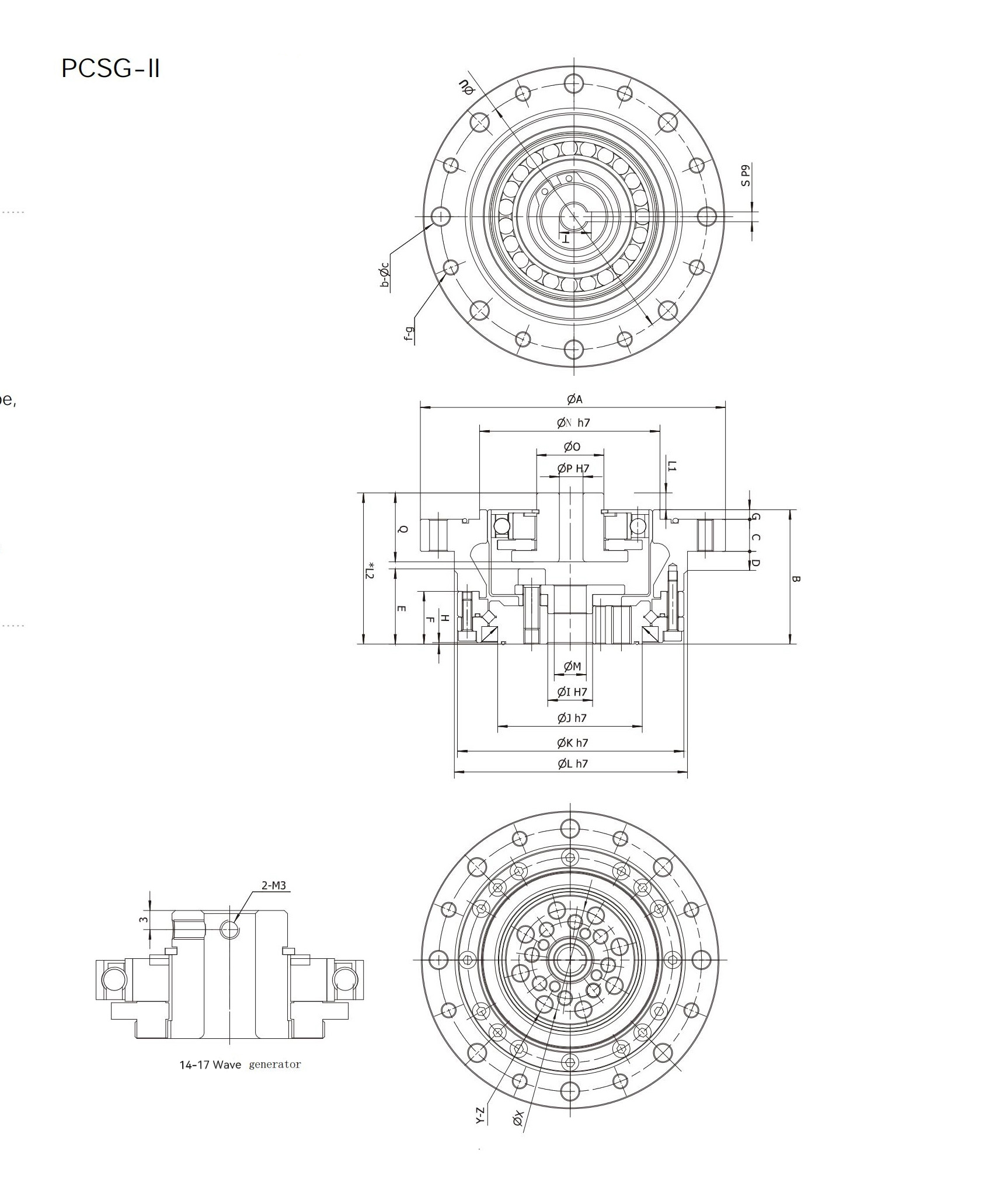

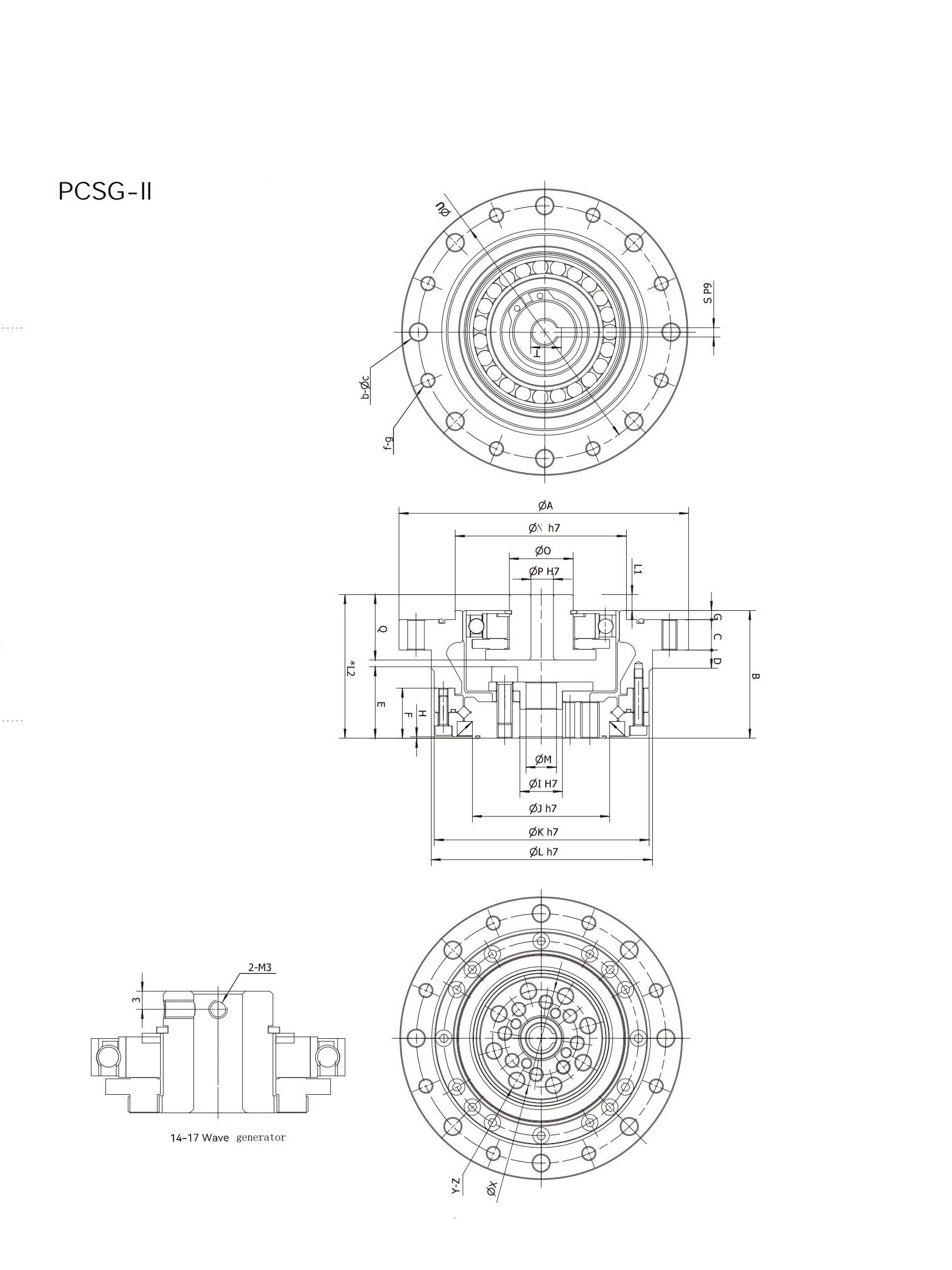

PCSG-II

Type Symbol	14	17	20	25	32
ΦA	73	79	93	107	138
B	36	39	41	49	60
C	7	8	10	10	12
D	3.5	4	5	5	5
E	10	10.5	15.5	20	27
F	16.5	16.5	16.5	18.5	22.5
G	2	2	3	3	3
H	0.5	0.5	0.5	0.5	1
ΦIH7	11	10	14	20	26
ΦJ	31	38	45	58	78
ΦKh7	55	62	70	85	112
①Lh7	56	63	72	86	113
ΦM	8	7	10	15	20
φNh7	38	48	56	67	90
φO	14	18	21	26	26
ΦPH7	6	8	12	14	14
Q*	18	20.7	21.5	21.6	23.6
SP9	2	3	4	5	5
T	7	9.4	13.8	16.3	16.3
φU	65	71	82	96	125
①X	23		32	42	55
Y	6	6	8	8	8
Z	M4X8	M5X10	M6X9	M8X12	M10X15
L1 min	1.5	1.5	1.5	1.5	2
L2*	40.5°	45°	45.5°1.0	52°10	62°-1.1
b	9	8	8	10	12
Φc	4.5	4.5	5.5	5.5	6.6
f	8	8	8	10	12
9	M4	M4	M5	M5	M6
Weight (kg)	0.33	0.47	0.65	1.2	2.3
