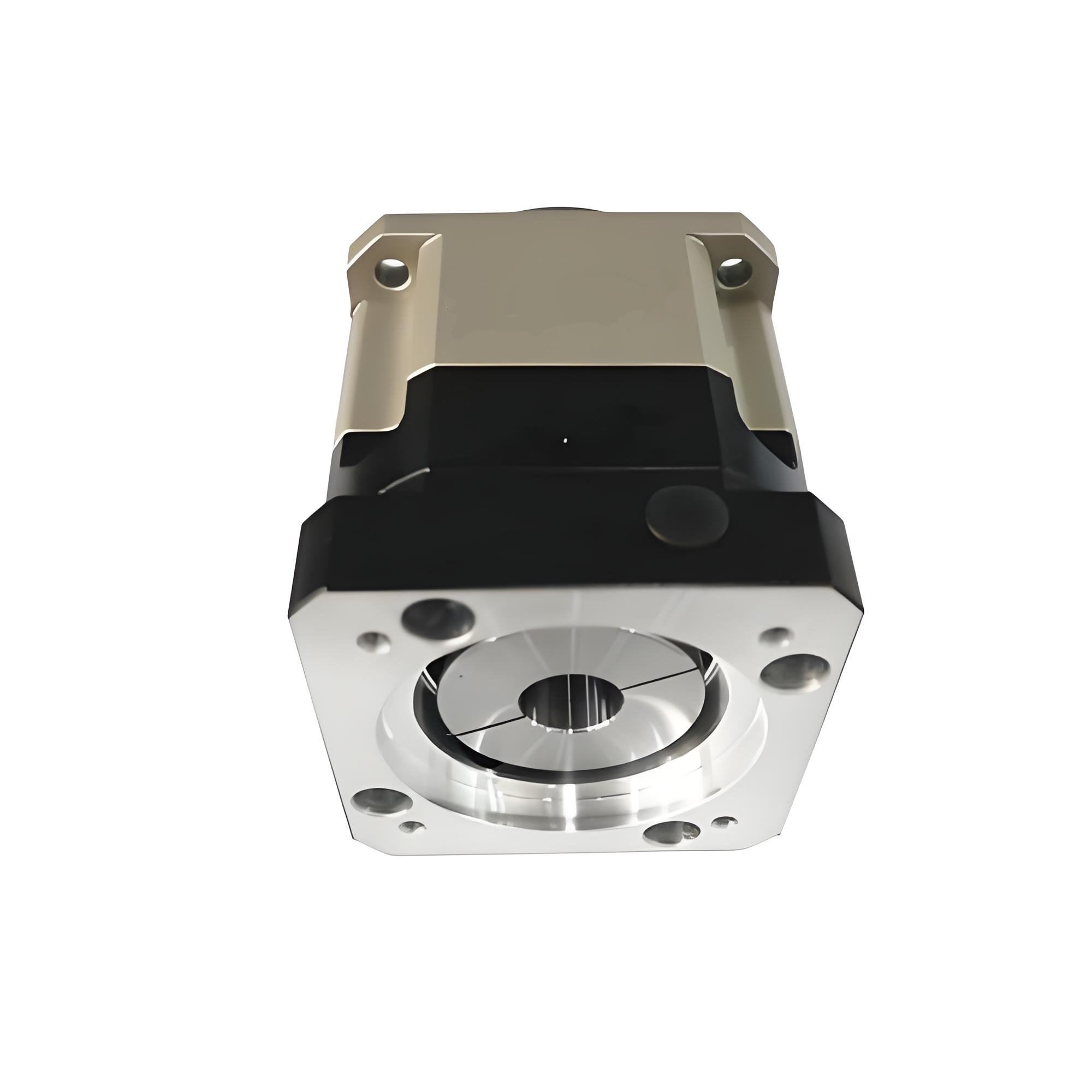

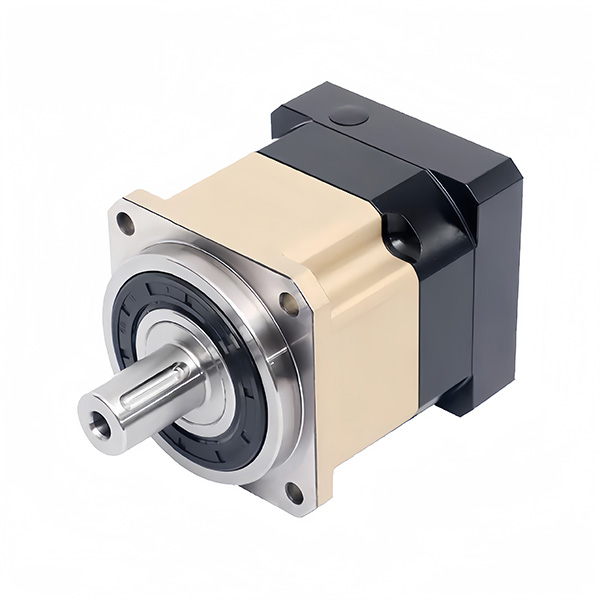

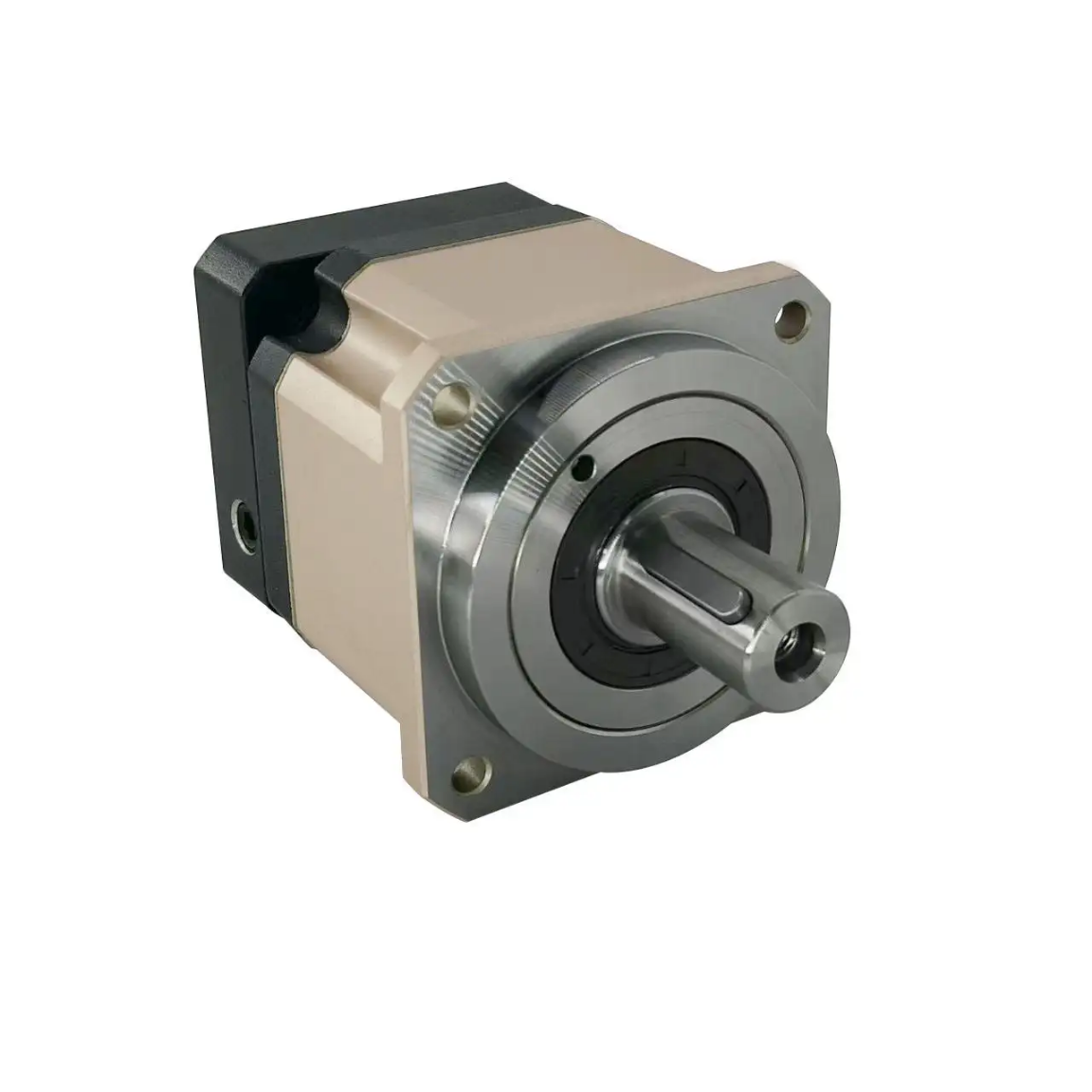

Name: Precision Planetary Gearbox - AB
Rating: 3.5 (76 reviews)

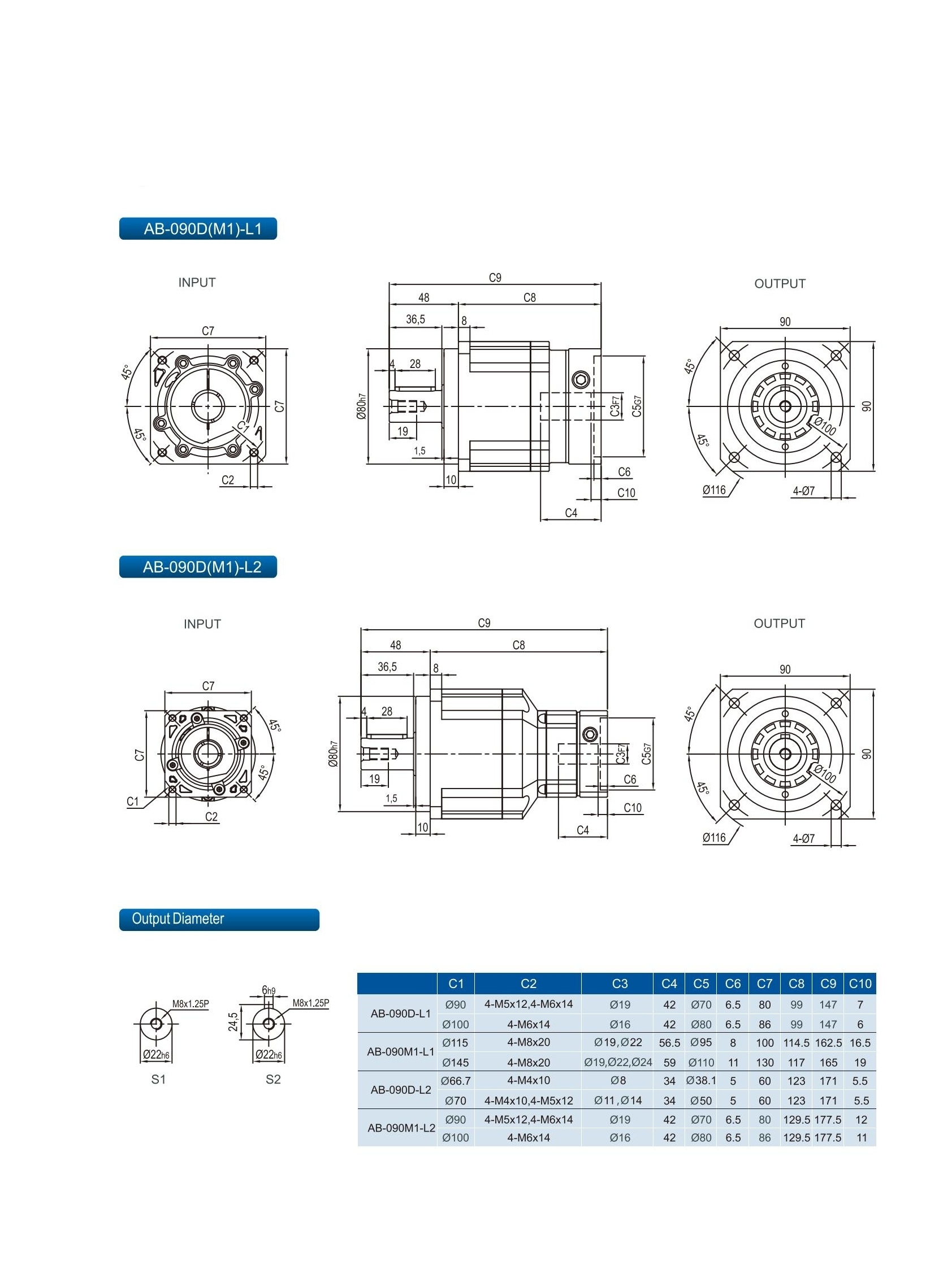

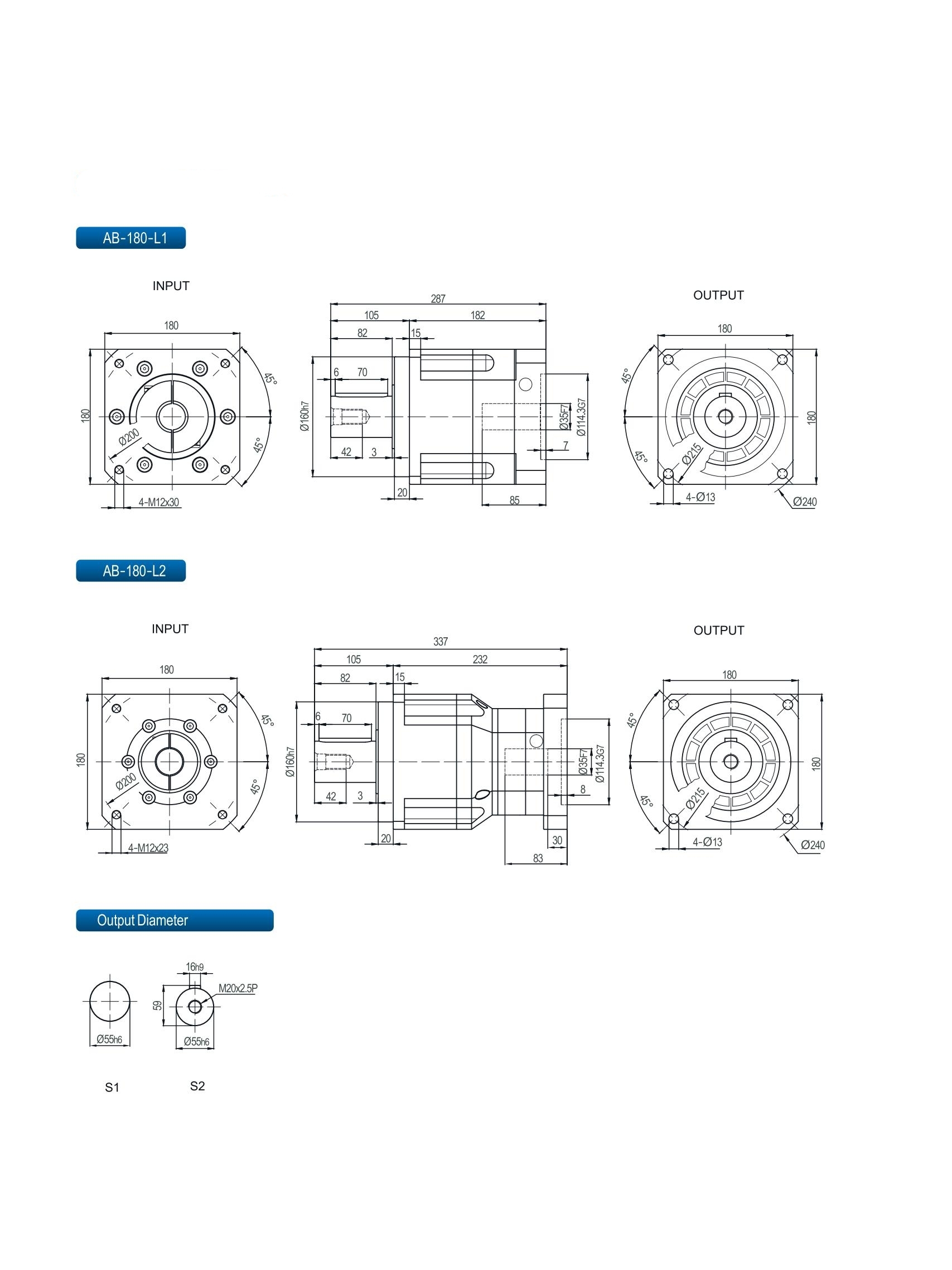

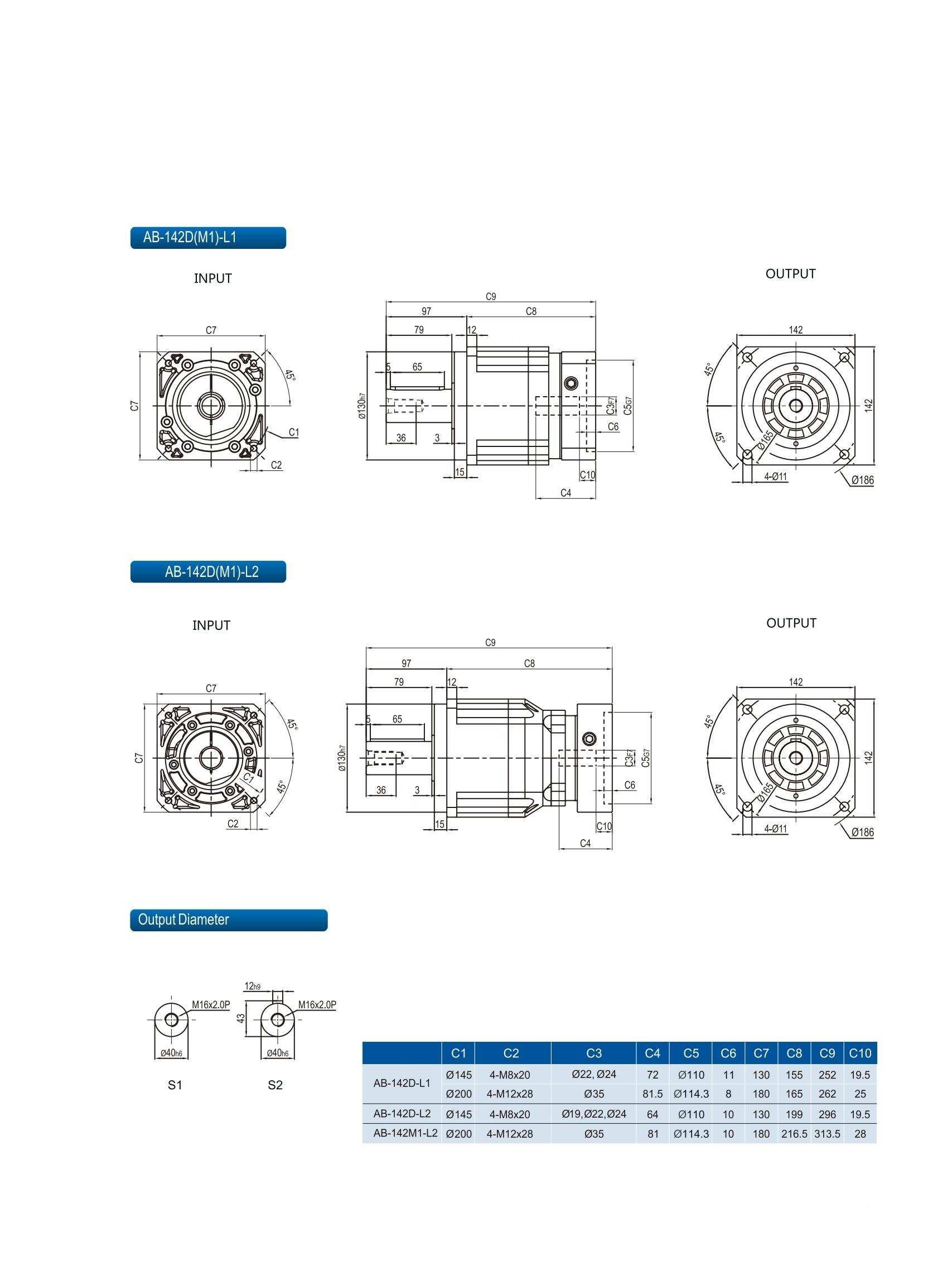

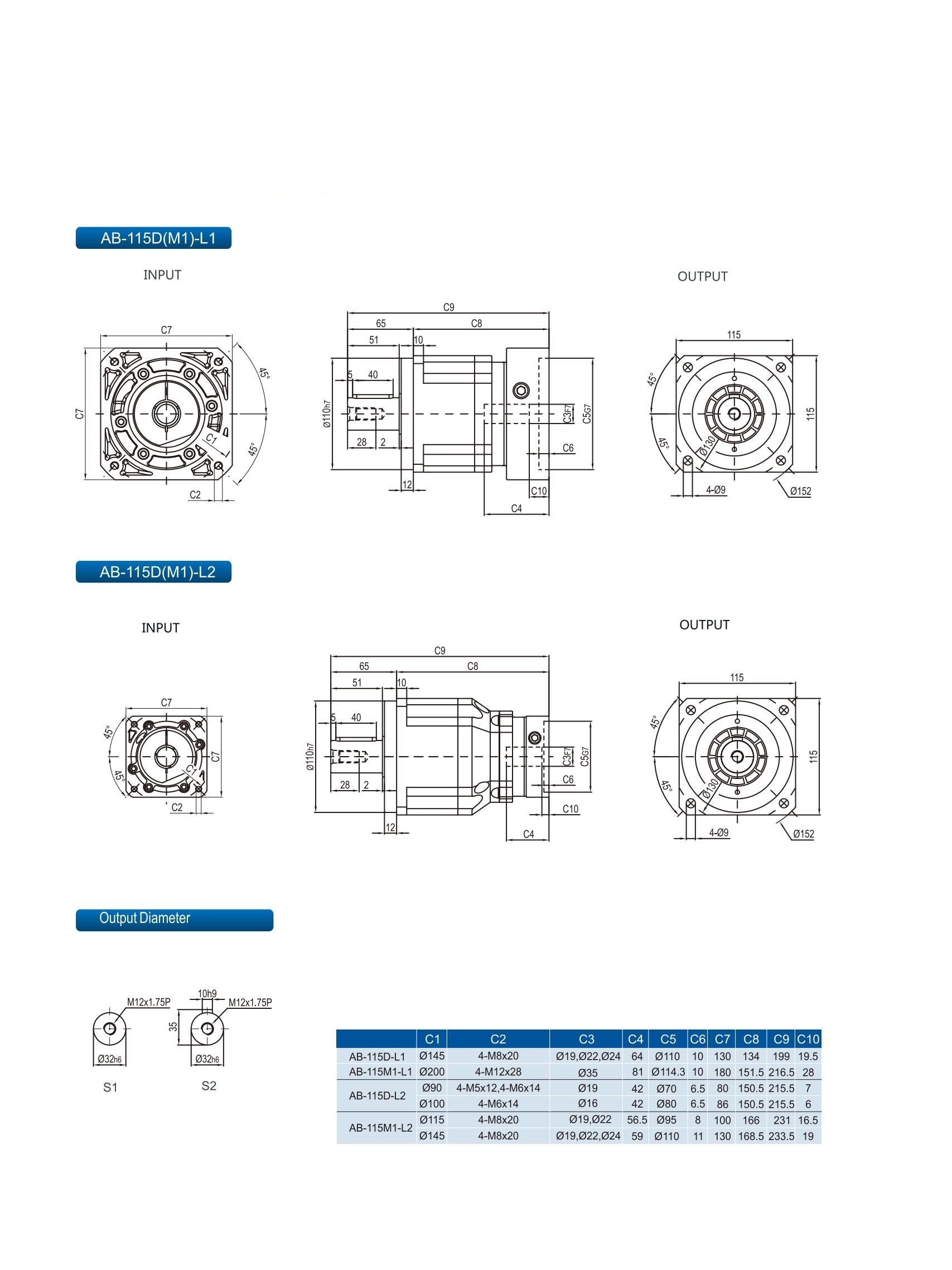

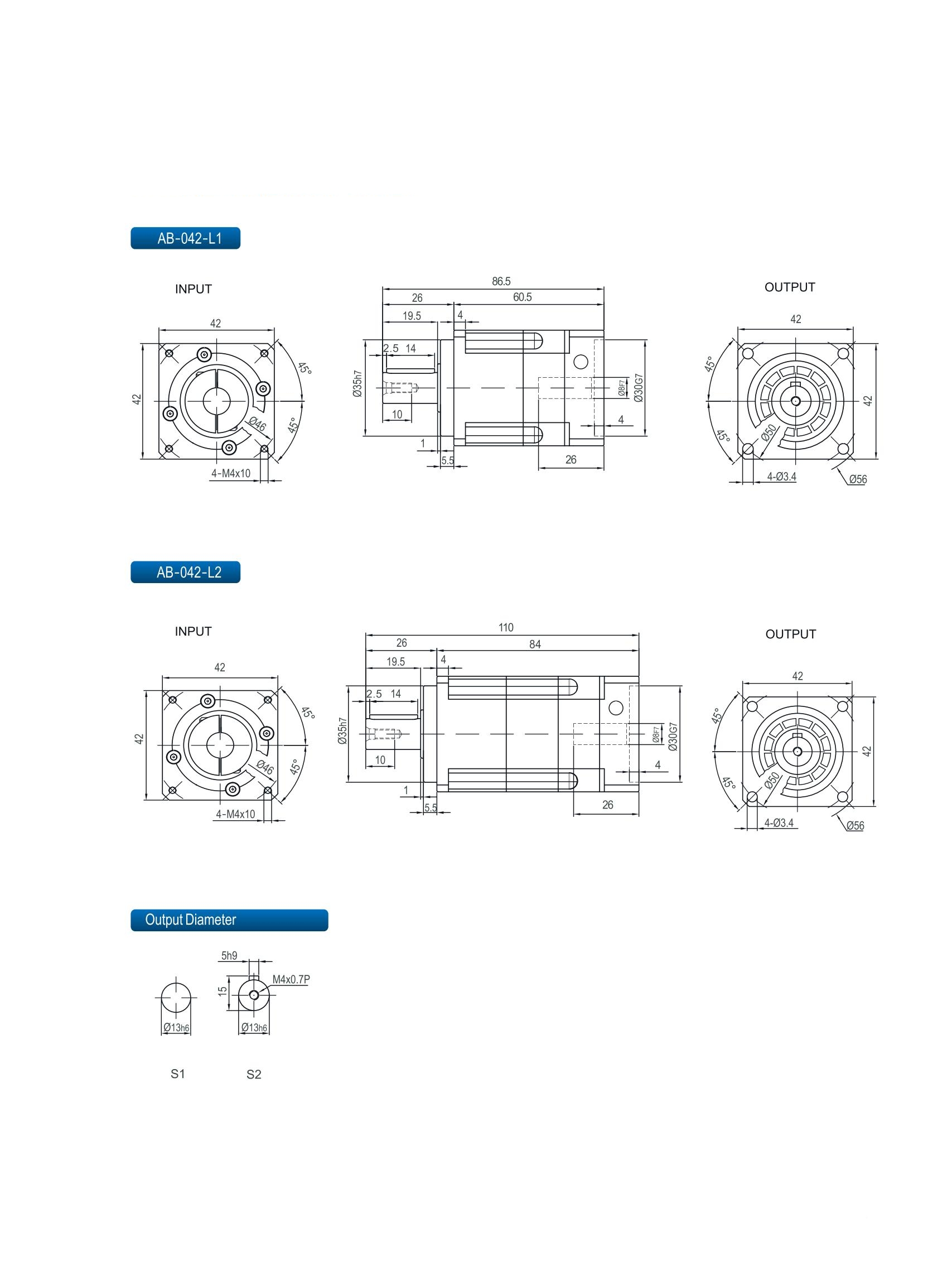

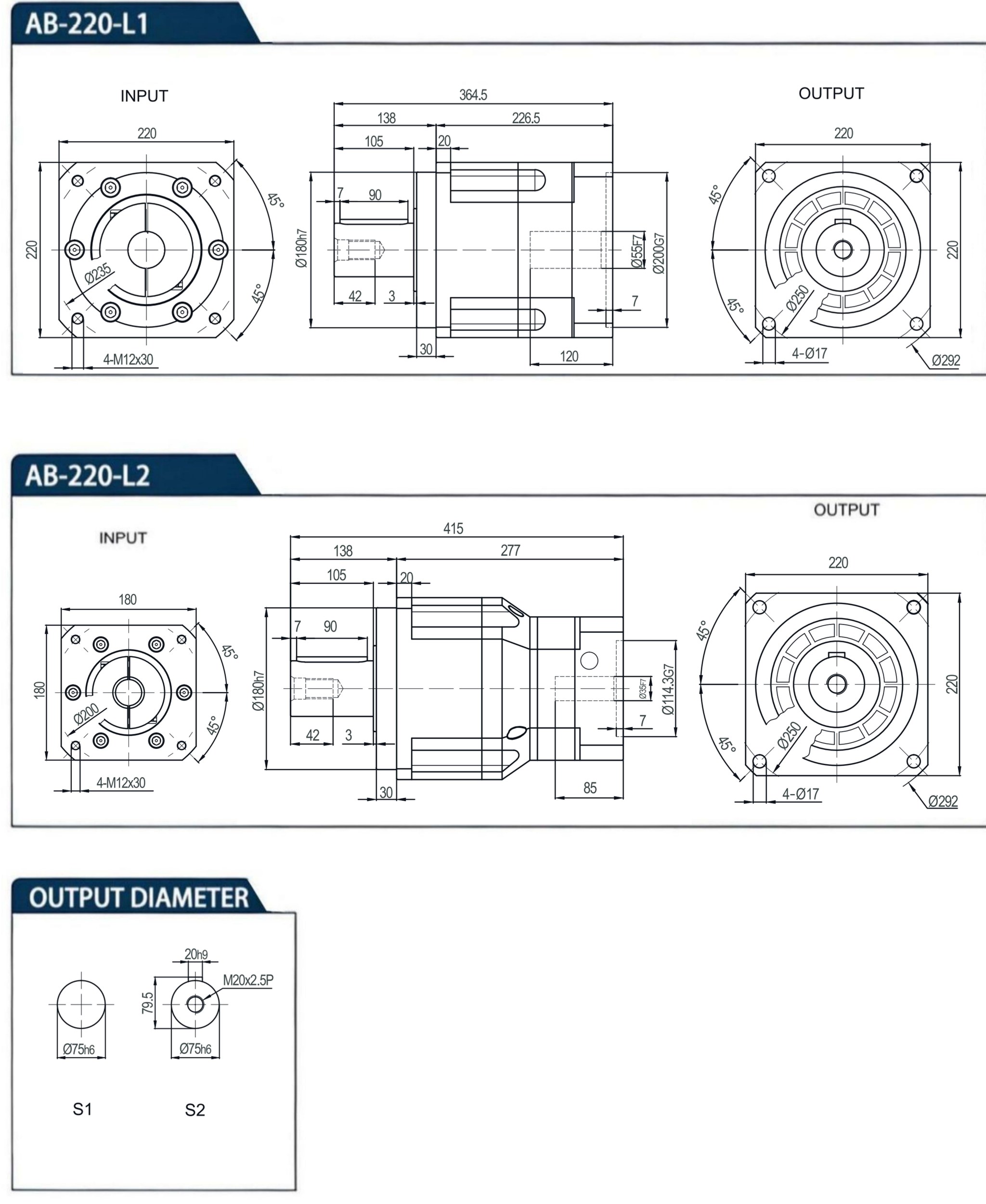

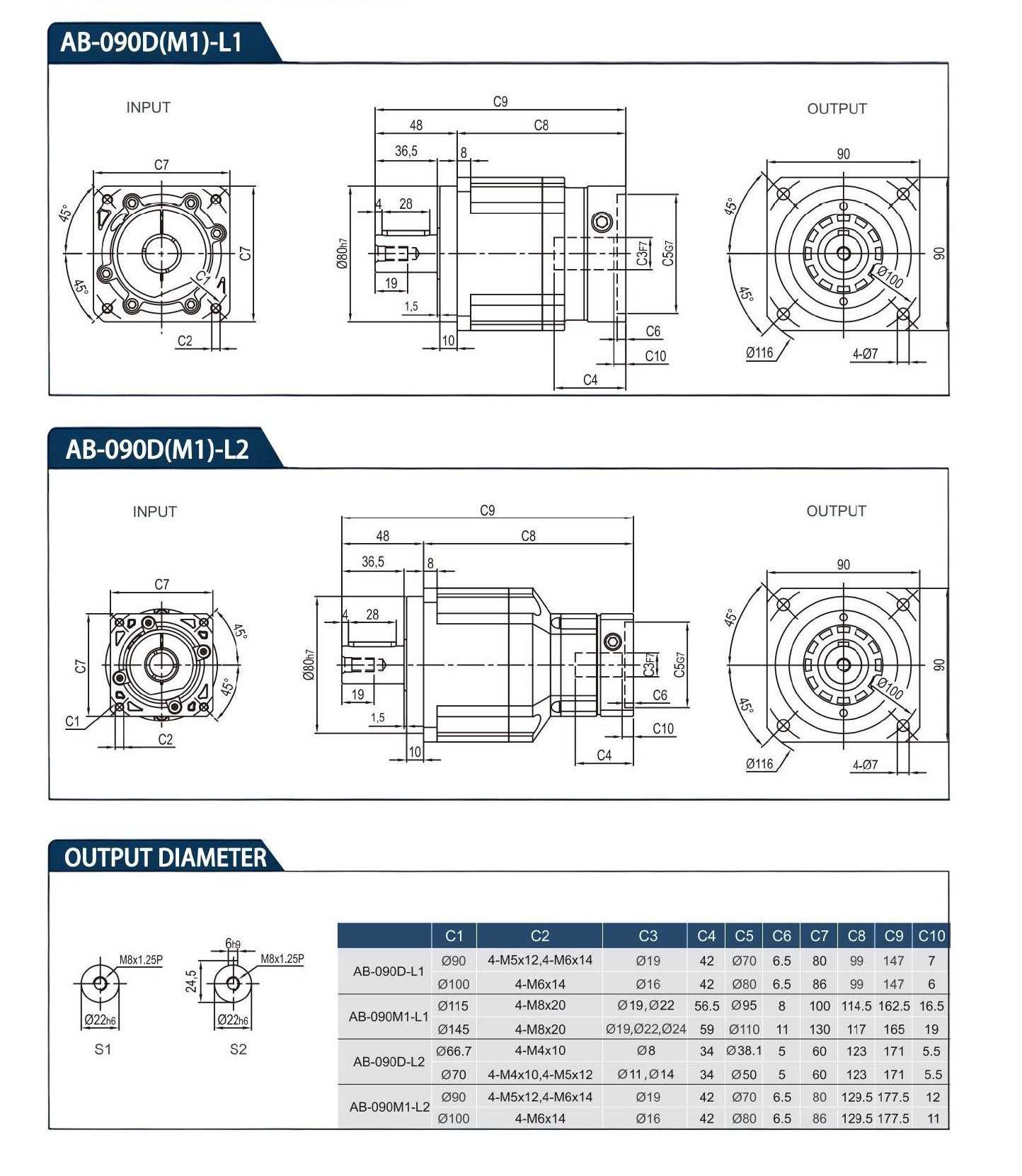

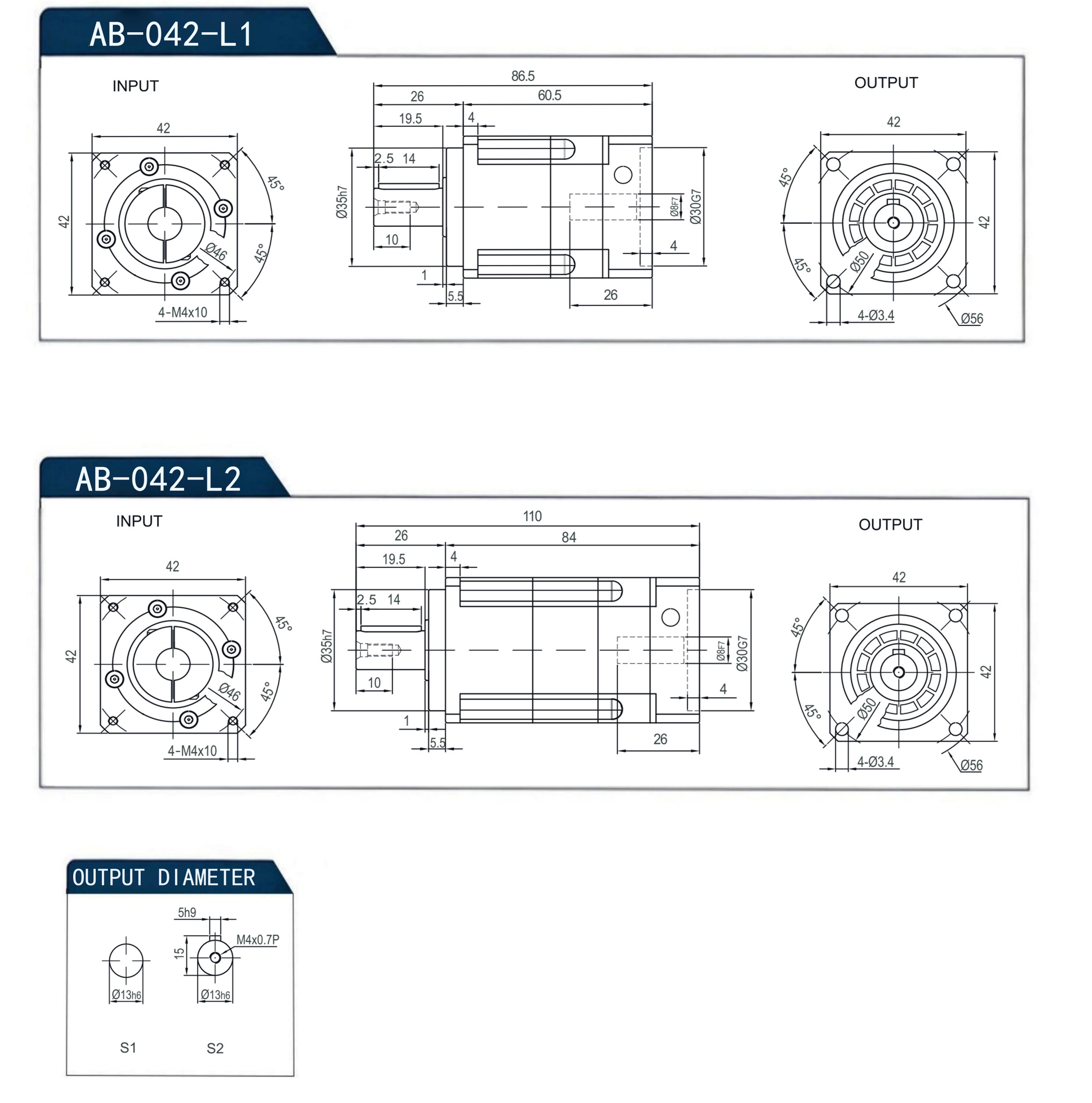

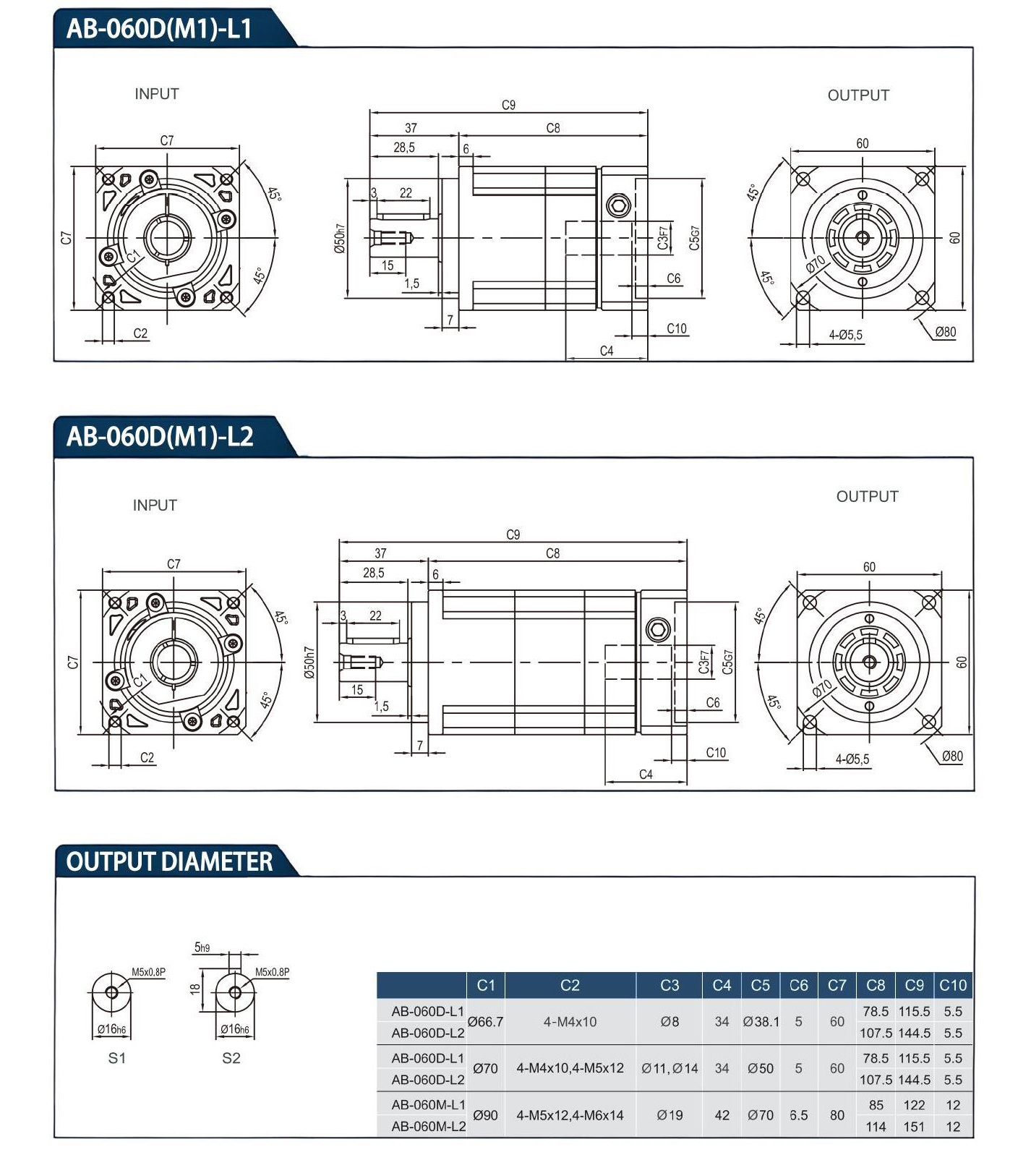

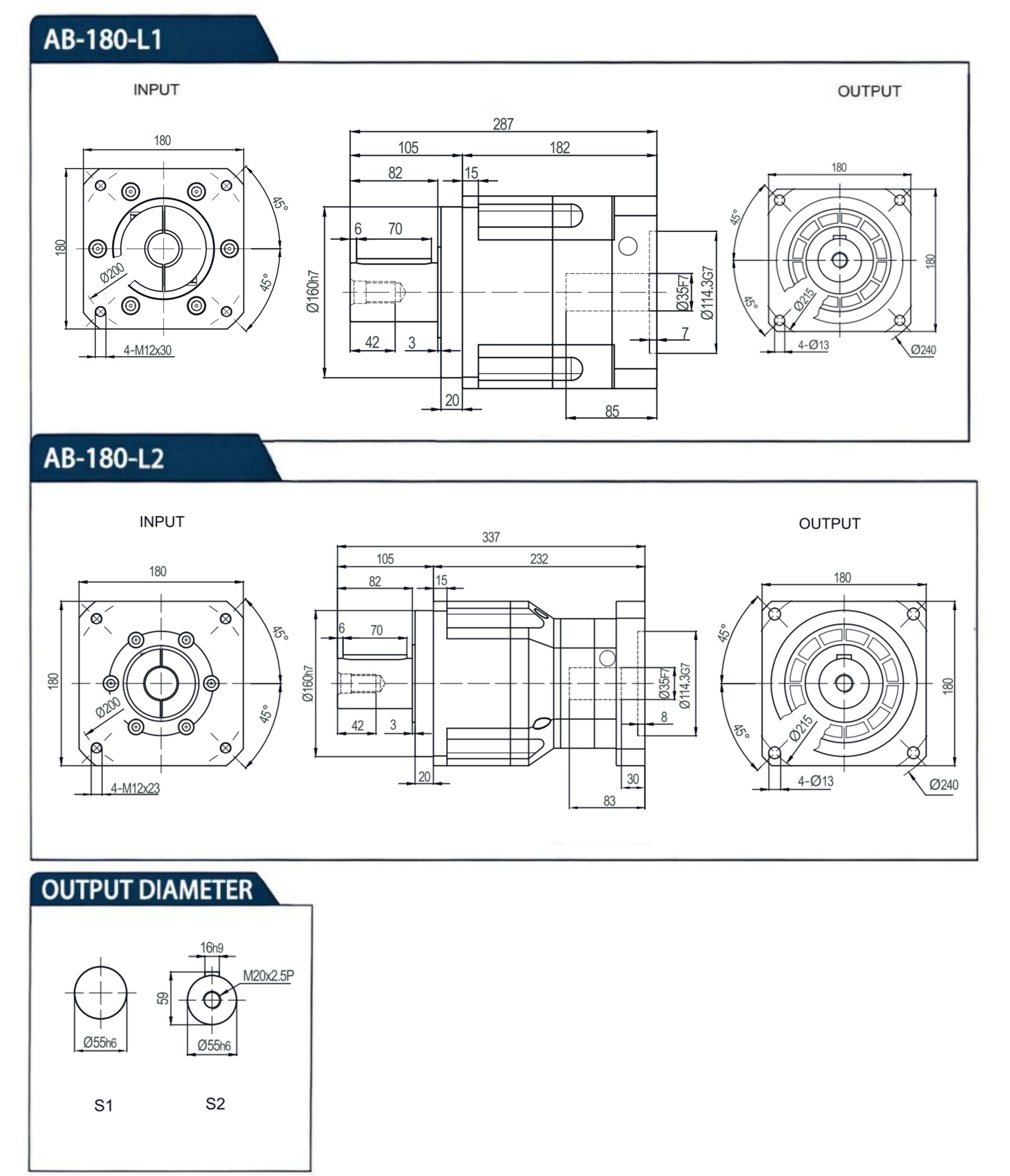

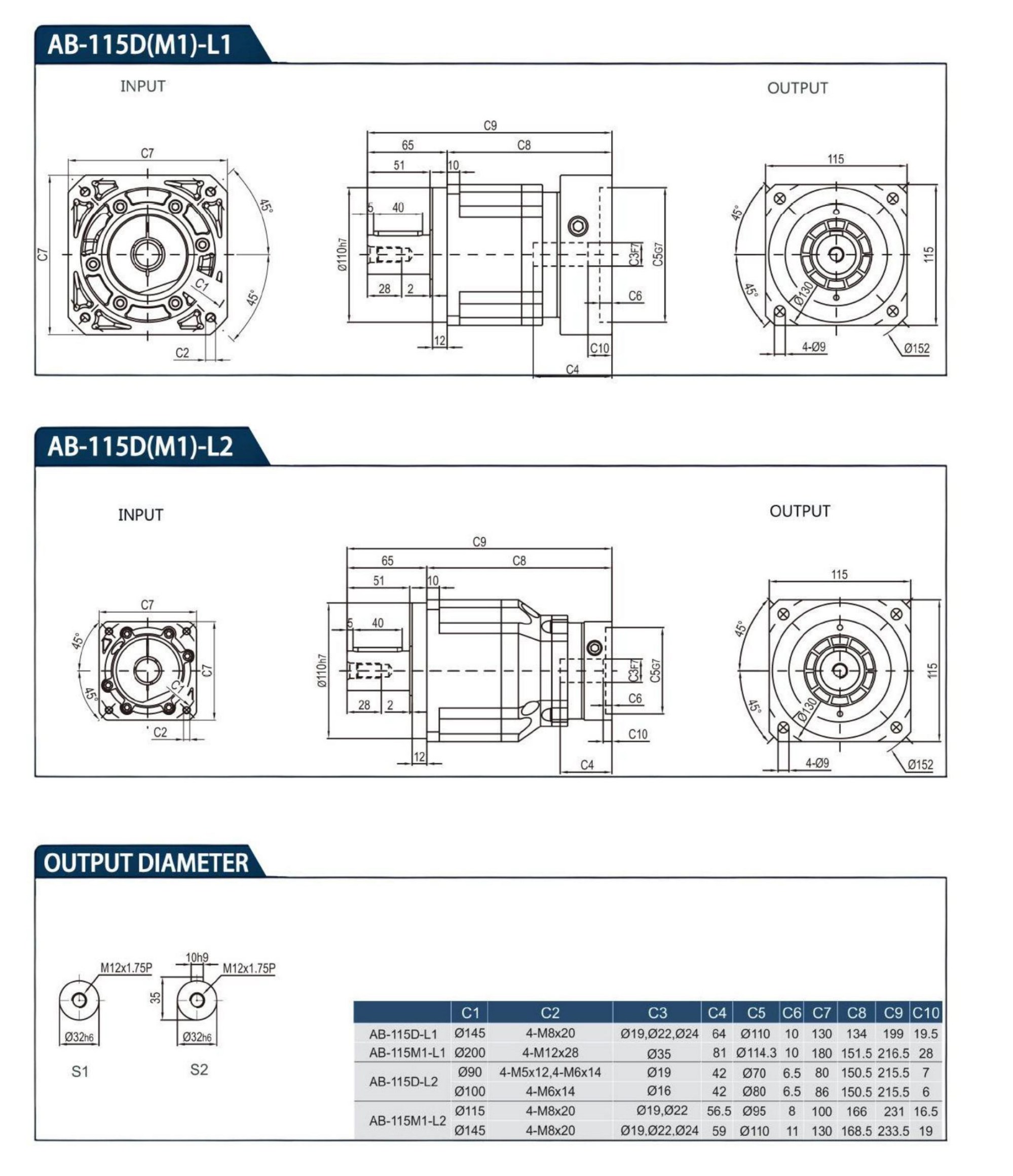

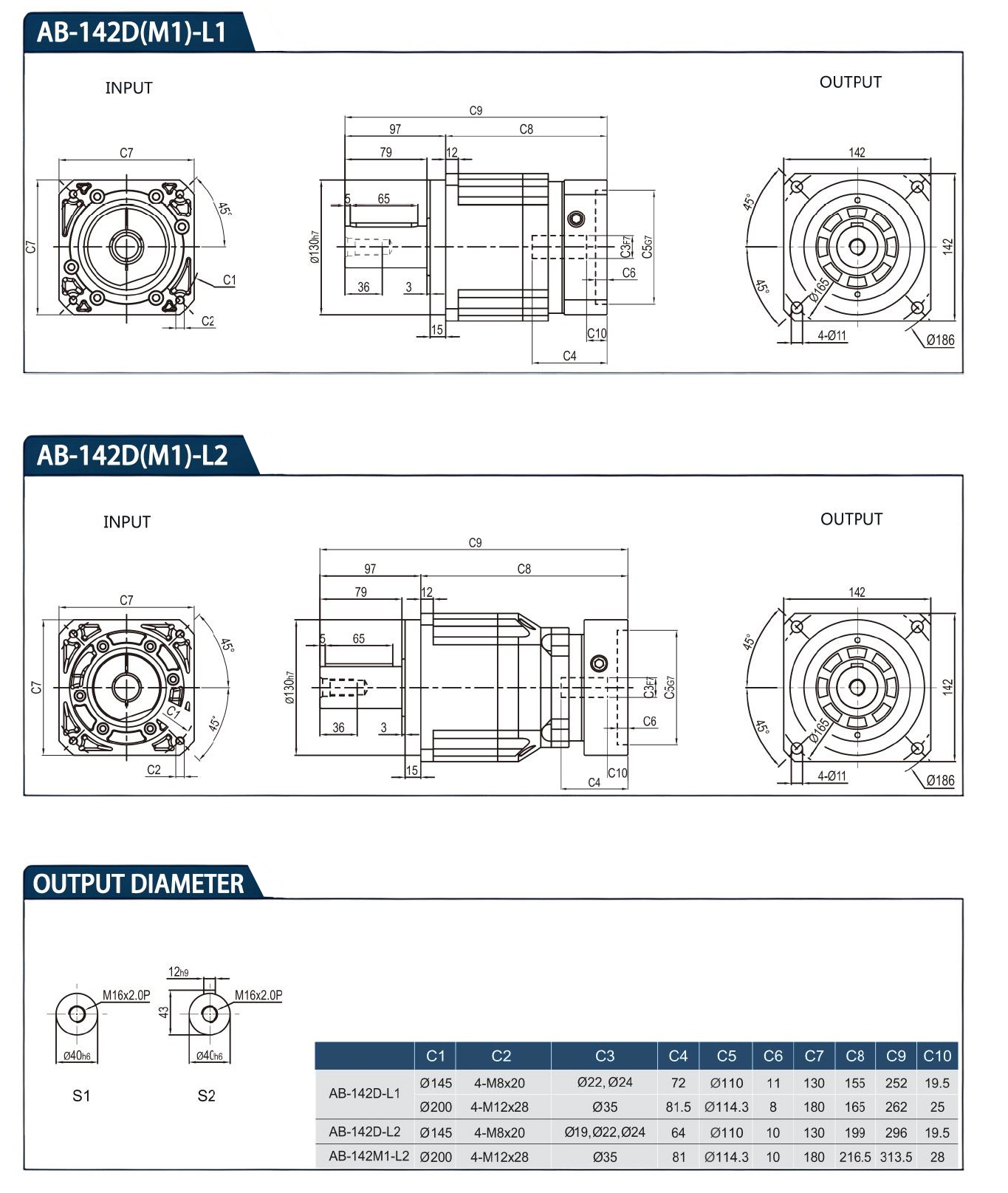

Frame size

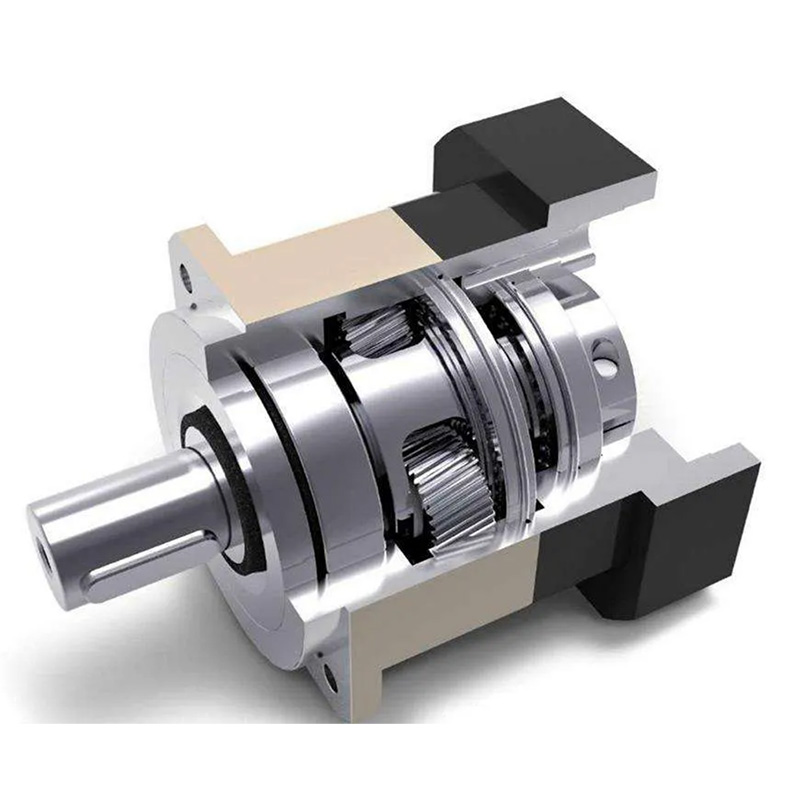

Features

High-Precision Series

Coaxial gearbox

Helical Tooth Design

Heavy-Duty Deep Groove Ball Bearings

Reinforced rotating shaft oil seal

Enhanced super wear-resistant tooth surface technology

Integrated structure of sun gear and input shaft

Integrated double support design planet carrier

GEAR BOX PERFORMANCE INFORMATION

		Stage	Ratio	AB042	AB060	AB090	AB115	AB142	AB180	AB220
Normal output torque	Nm	1	3	20	55	130	208	342	588	1140
			4	19	50	140	290	542	1050	1700
			5	22	60	160	330	650	1200	2000
			6	20	55	150	310	600	1100	1900
			7	19	50	140	300	550	1100	1800
			8	17	45	120	260	500	1000	1600
			10	14	40	100	230	450	520	1220
		2	12	20	55	130	208	342	588	1140
			15	20	55	130	208	342	588	1140
			20	19	50	140	290	542	1050	1700
			25	22	60	160	330	650	1200	2000
			30	22	55	130	208	342	1200	2000
			35	22	60	160	330	650	1200	2000
			40	22	50	140	290	542	1200	2000
			50	22	60	160	330	650	1200	2
			60	20	55	150	310	600	1100	1900
			70	19	50	140	300	550	1100	1800
			80	17	45	120	260	500	1000	1600
			100	14	40	100	230	450	520	1220
Maximum output torque	Nm	1.2	3~100	3 times nominal output torque
Normal input speed	rpm	1.2	3~100	5	5000	4000	4000	3000	3000	2000
Maximum input speed	rpm	1.2	3~100	10000	10000	8000	8000	6000	6000	4000
Backlash PO	arcmin	1.2	3~10	≤1	≤1	≤1	≤1	≤1	≤1	≤1
Backlash PO	arcmin	2	10~100	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Backlash P1	arcmin	1.2	3~10	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Backlash P1	arcmin	2	12~100	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Backlash P2	arcmin	1.2	3~10	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Backlash P2	arcmin	2	12~100	≤7	≤7	≤7	≤7	≤7	≤7	≤7
Torsional stiffness	Nm/arcmin	1.2	3~100	3	7	14	25	50	145	225
Maximum radial force	N	12	3~100	780	1530	3250	6700	9400	14500	50000
Maximum axial force F2A1	N	12	3~100	350	630	1300	3000	4000	6200	35000
Maximum axial force F2A2	N	12	3~100	390	765	1625	3350	4700	7250	25000
Service life	hr	12	3~100	20,000*
Efficiency at full load	%	1.2	3~10	≥97%
Efficiency at full load	%	2	12~100	≥94%
Gearbox weight	kg	1.2	3～10	0.5	1.3	3.7	7.8	145	29	48
Gearbox weight	kg	2	12~100	0.8	1.9	4.1	9	17.5	33	60
Operating temperature	℃	12	3~100	-10℃~+90℃
Standard lubrication		12	3~100	Synthetic grease
Protection class		12	3~100	IP65
Installation position		12	3~100	Any
Running noise(n=3000rpm)	dB	12	3~100	≤56	≤58	≤60	≤63	≤65	≤67	≤70

Stage		Ratio	AB042	AB060	AB090	AB115	AB142	AB180	AB220
Mass moment of inertia J₁ kg-cm²	1	3	0.03	0.16	0.61	3.25	9.21	28.98	69.61
		4	0.03	0.14	0.48	2.74	7.54	23.67	54.37
		5	0.03	0.13	0.47	2.71	7.42	23.29	53.27
		6	0.03	0.13	0.45	2.65	7.25	22.75	51.72
		7	0.03	0.13	0.45	2.62	7.14	22.48	50.97
		8	0.03	0.13	0.44	2.58	7.07	22.59	50.84
		10	0.03	0.13	0.44	2.57	7.03	22.51	50.56
	2	12	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		15	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		20	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		25	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		30	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		35	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		40	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		50	0.03	0.03	0.13	0.44	2.57	7.03	22.51
		60	0.03	0.03	0.13	0.44	2.57	7.03	22.51
		70	0.03	0.03	0.13	0.44	2.57	7.03	22.51
		80	0.03	0.03	0.13	0.44	2.57	7.03	22.51
		100	0.03	0.03	0.13	0.44	2.57	7.03	22.51
