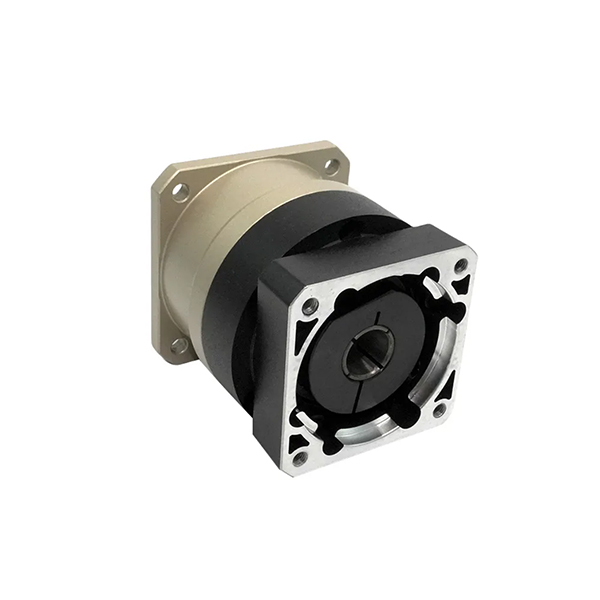

PGA.2

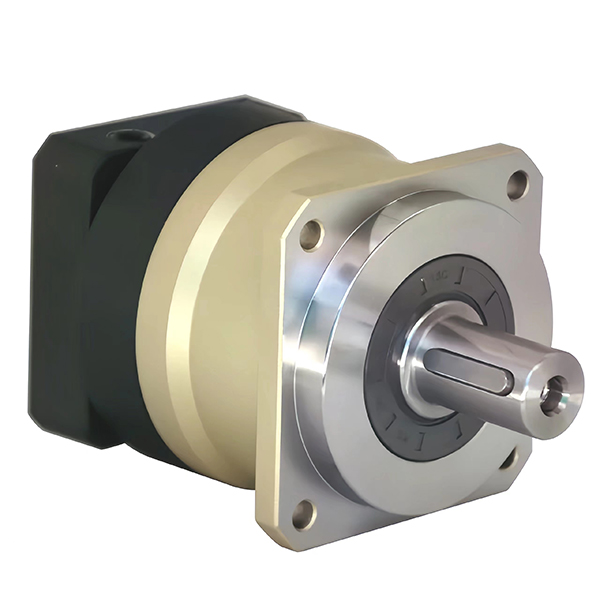

PGA.1

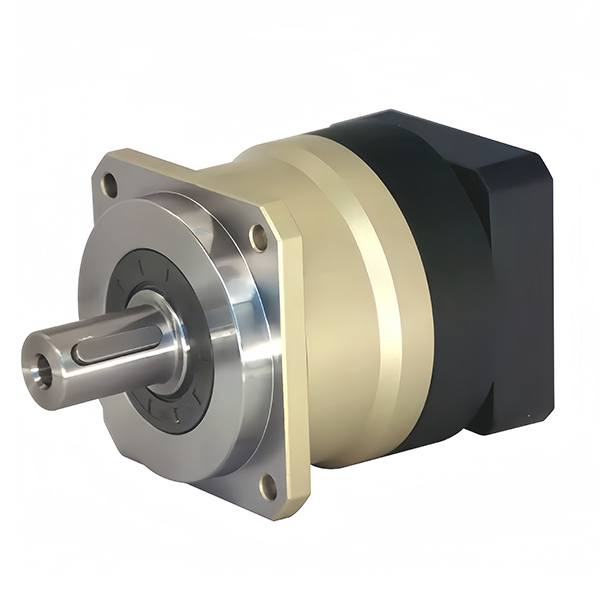

PGA.3

Economy Planetary Gearbox PXF

Frame size

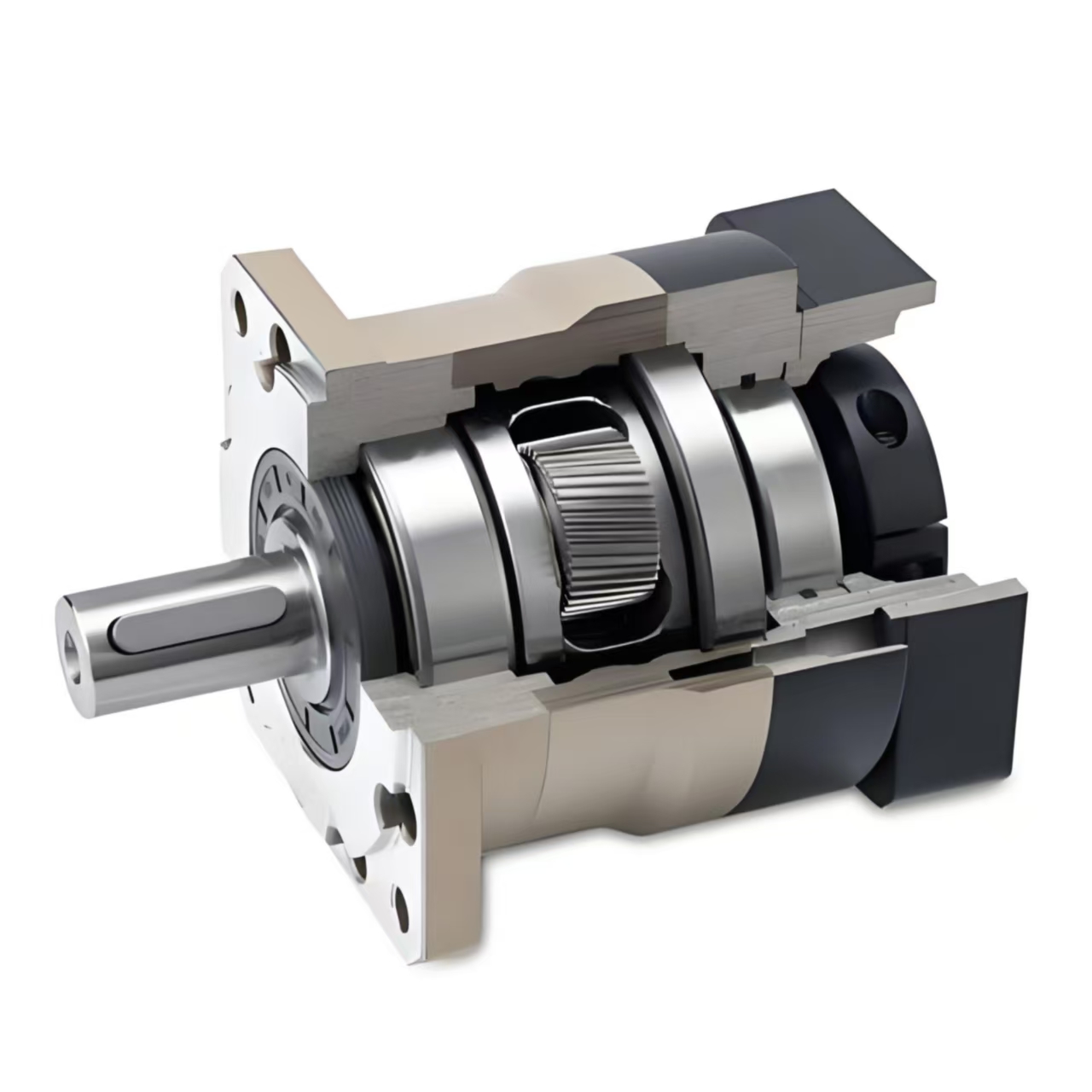

The PXF gearbox offers outstanding value with its lightweight construction and high power density, making it suited for demanding applications. It features a low-friction bearing design, optimized lubrication, and an upgraded output bearing that supports higher radial and axial loads—all within a compact footprint. The helical gearing ensures smooth and significantly quieter operation, providing enhanced performance at a competitive price.

Features



 Economy Series


 Coaxial gearbox


 Helical Tooth Design


 Heavy-Duty Deep Groove Ball Bearings


 Round output flange


 Integrated structure of sun gear and input shaft


 Integrated double support design planet carrier

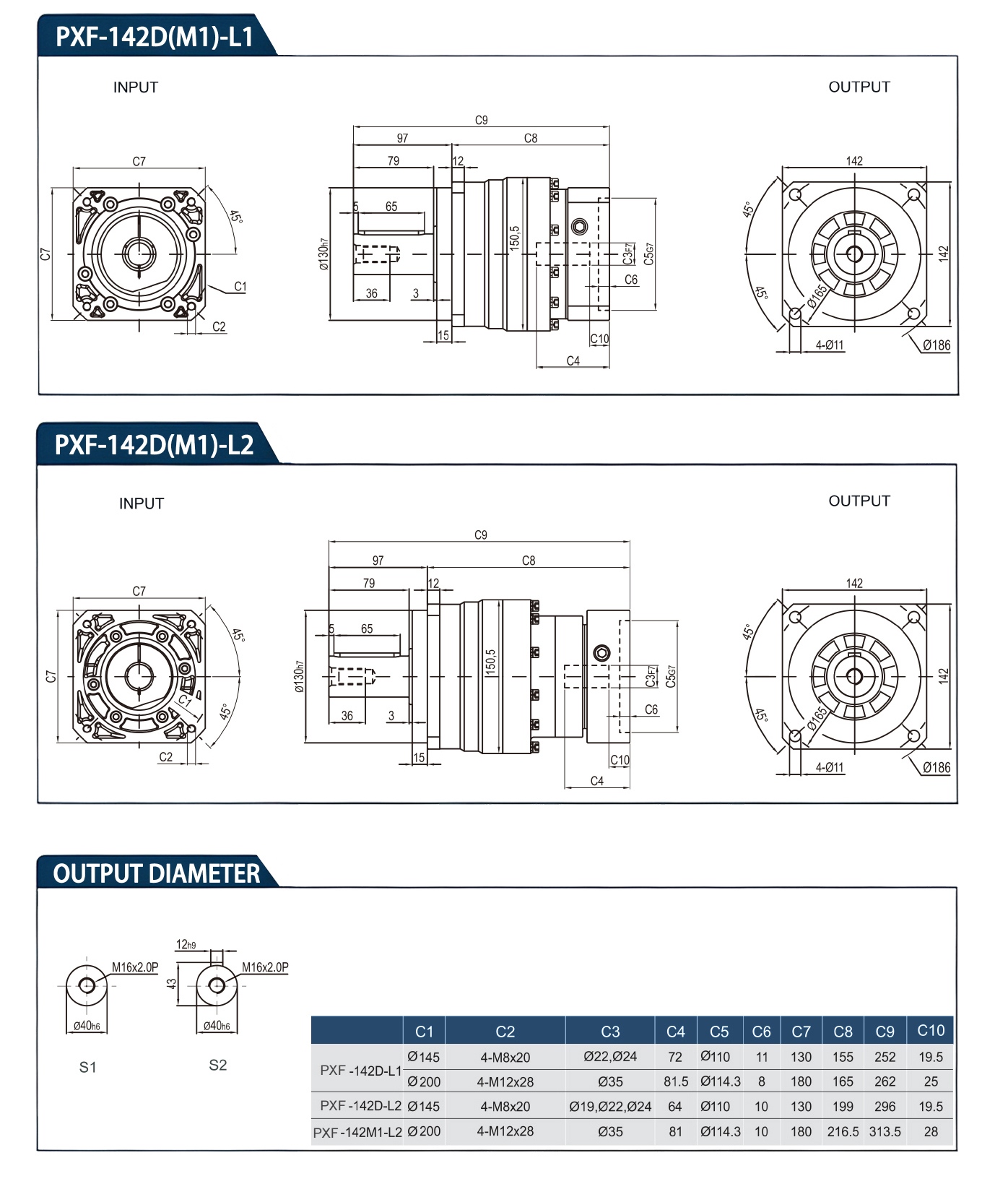

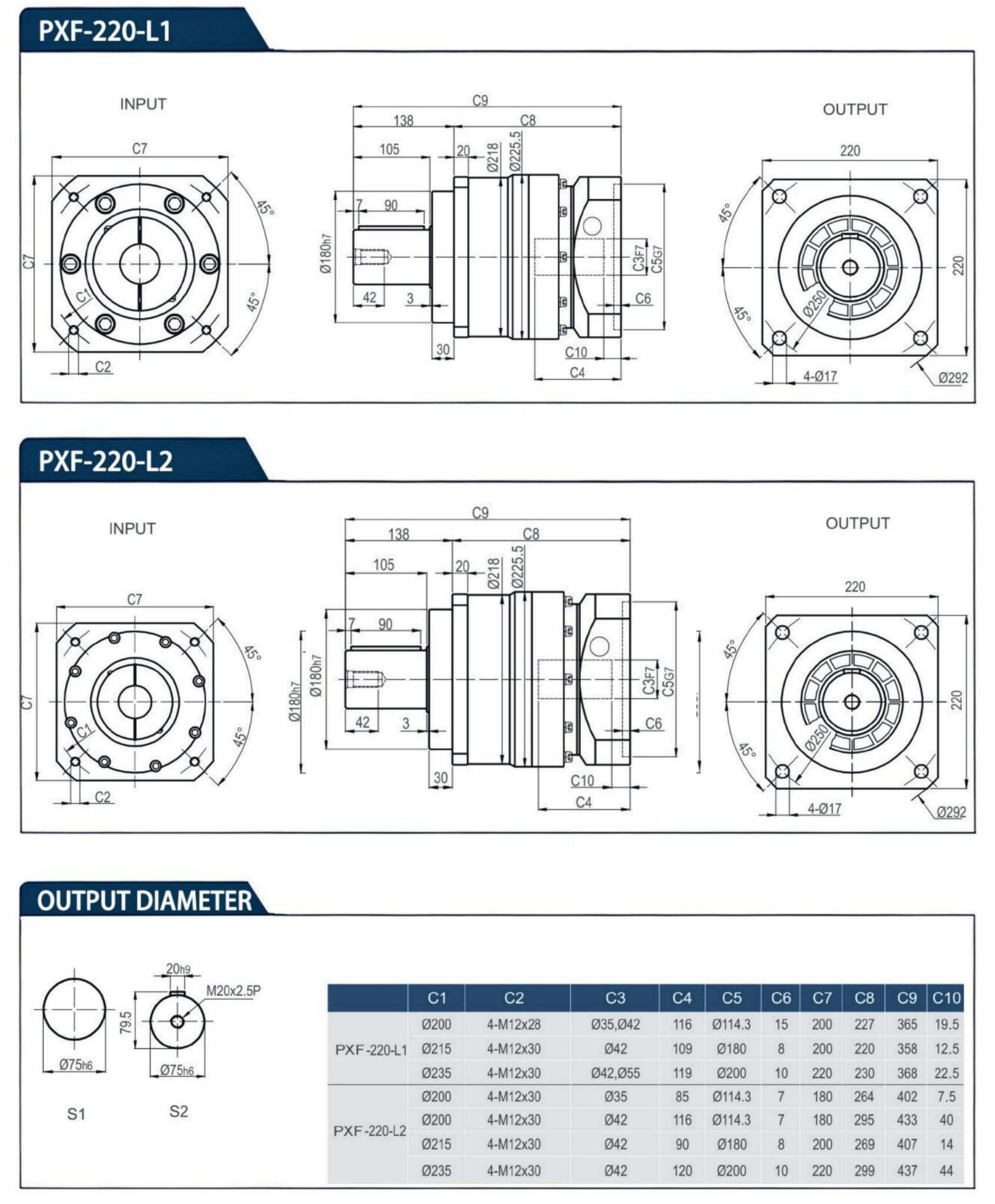

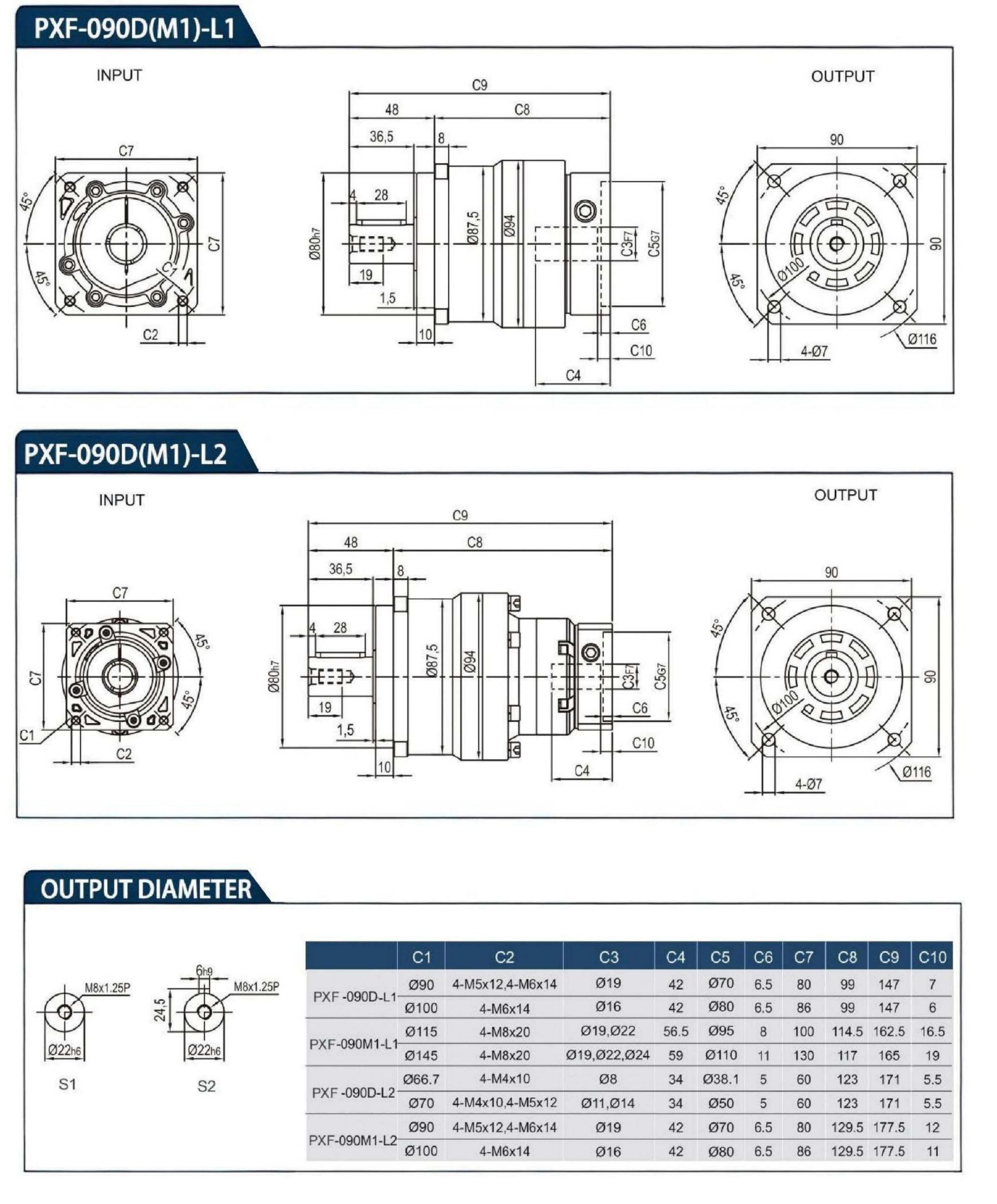

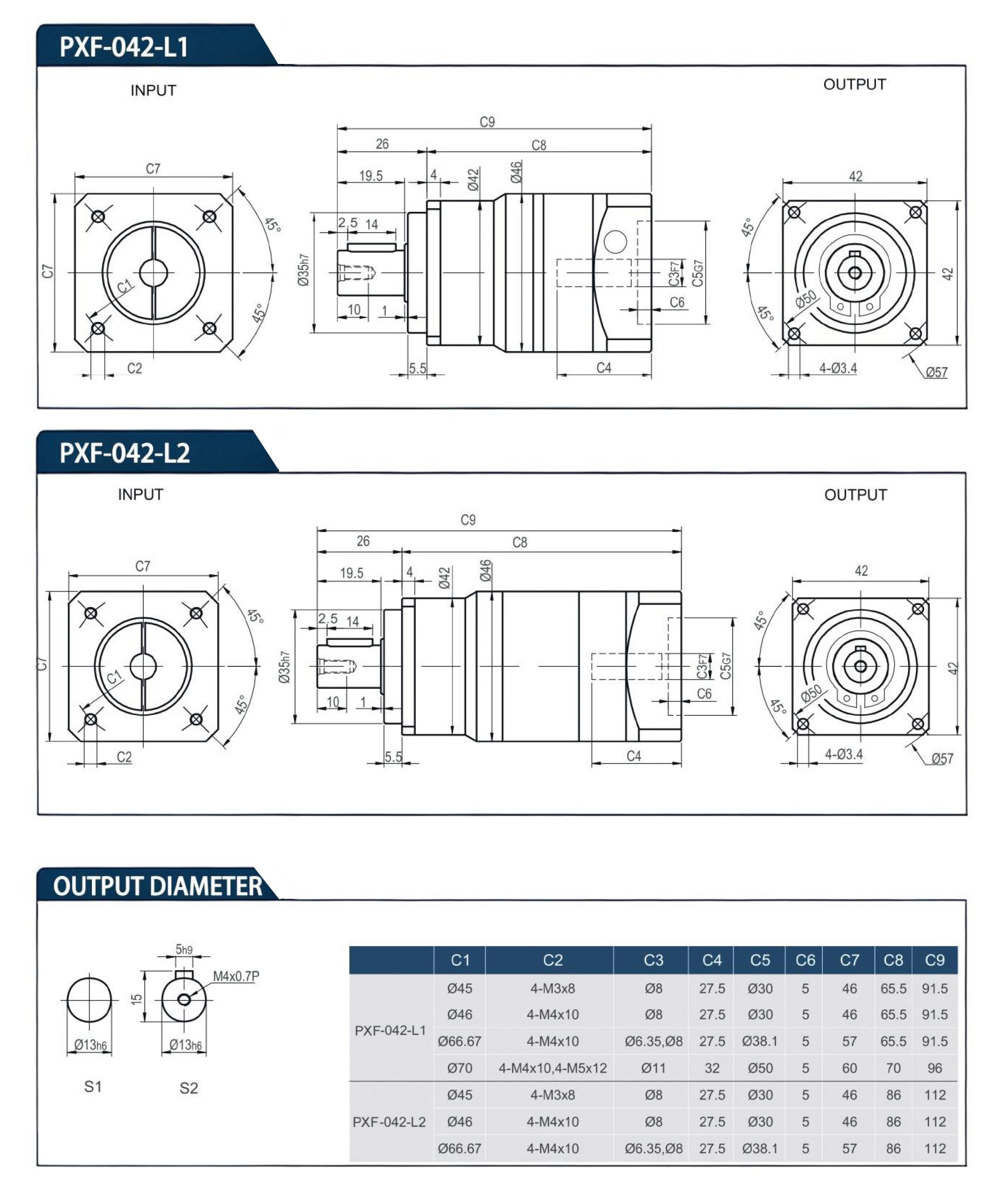

140x140

GEAR BOX PERFORMANCE INFORMATION



    Stage Ratio PXF042 PXF060 PXF090 PXF115 PXF142 PXF180 PXF220
Normal output torque Nm 1 3 20 55 130 208 342 588 1140
4 19 50 140 290 542 1050 1700
5 22 60 160 330 650 1200 2000
6 20 55 150 310 600
7 19 50 140 300 550 1100 1800
8 17 45 120 260 500 1000 1600
10 14 40 100 230 450 520 1220
2 12 20 55 130 208 342
15 20 55 130 208 342 588 1140
20 19 50 140 290 542 1050 1700
25 22 60 160 330 650 1200 2000
30 22 50 130 208 342 1200 2000
35 22 60 160 330 650 1200 2000
40 22 50 140 290 542 1200 2000
50 22 60 160 330 650 1200 2000
60 20 55 150 310 600
70 19 50 140 300 550 1100 1800
80 17 45 120 260 500 1000 1600
100 14 40 100 230 450 520 1220
Maximum output torque Nm 12 3~100
Normal input speed rpm 12 3~100 5000 5 4000 4000 3000 3000 2
Maximum input speed rpm 12 3~100 10000 10000 8000 8000 6 6000 4
Backlash arcmin 1 3~10 ≤5
2 12~100   ≤7 7 ≤5 7 ≤7 ≤5
Torsional stiffness Nm/arcmin 12 3~100 3 7 14 25 50 145 225
Maximum radial force   12 3~100 780 1530 3.25 6700 9.4 14500 50000
Maximum axial force F2A1   12 3~100 350   1.3 3.35 4000 6200 35
Maximum axial force F2A2   12 3~100 390 765 1625   4700 7250 250
Service life   12 3~100 20000
Efficiency at full load % 1 3~10 ≥97%
2 12~100 ≥94%
Gearbox weight kg 1 3~10 0.5     78 14.5 29 68
2 12~100 0.8 13 3.7 g 17.5 33
Operating temperature ℃ 12 3~100 ‘-10℃~+90℃
Standard lubrication   12 3~100 Synthetic grease
Protection class   12 3~100 IP65
Installation position   12 3~100 Any
Running noise(n=3000rpm) dB 12 3~100 ≤56 ≤58 ≤60 ≤63 ≤65 ≤67 ≤70



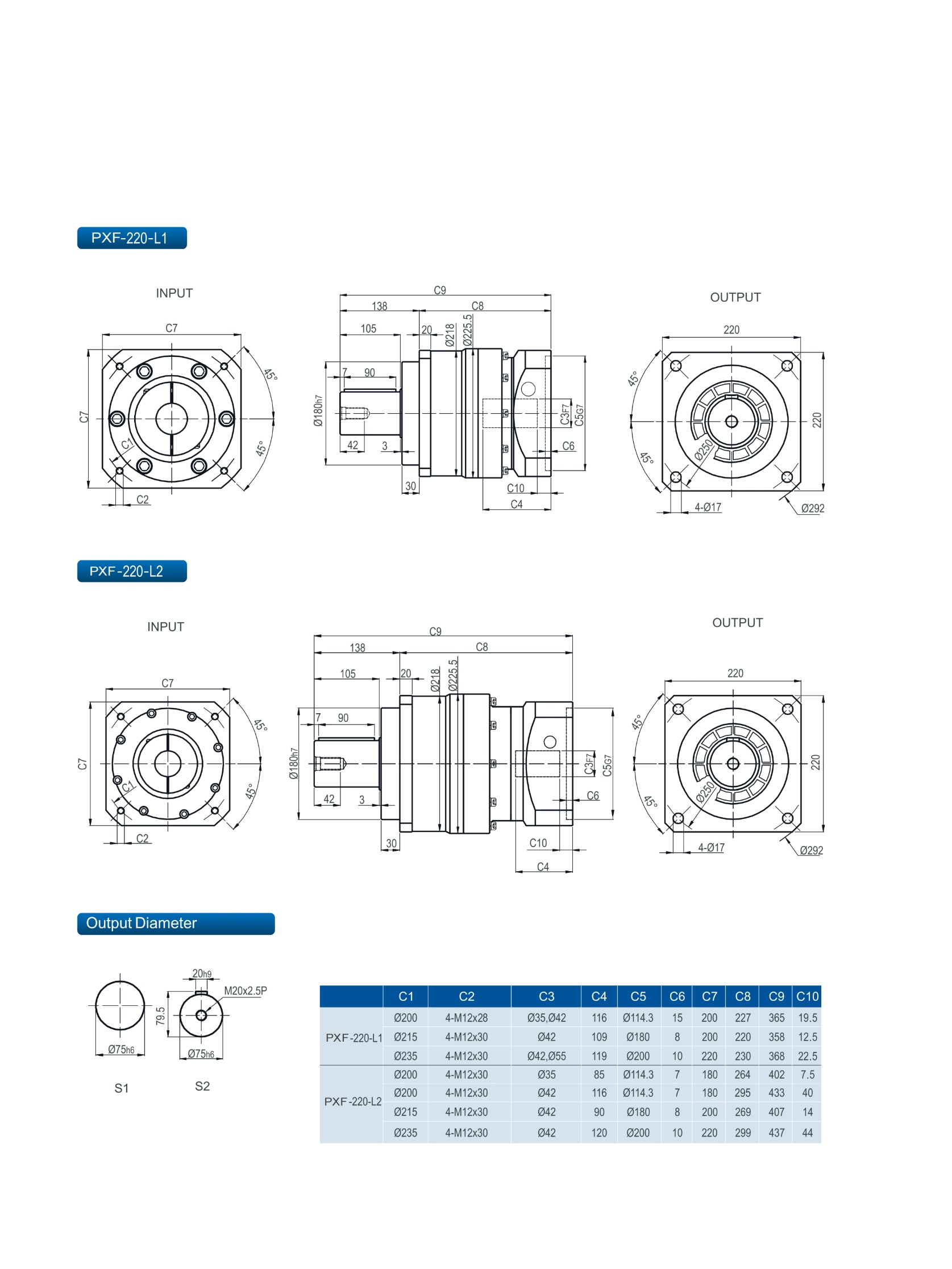

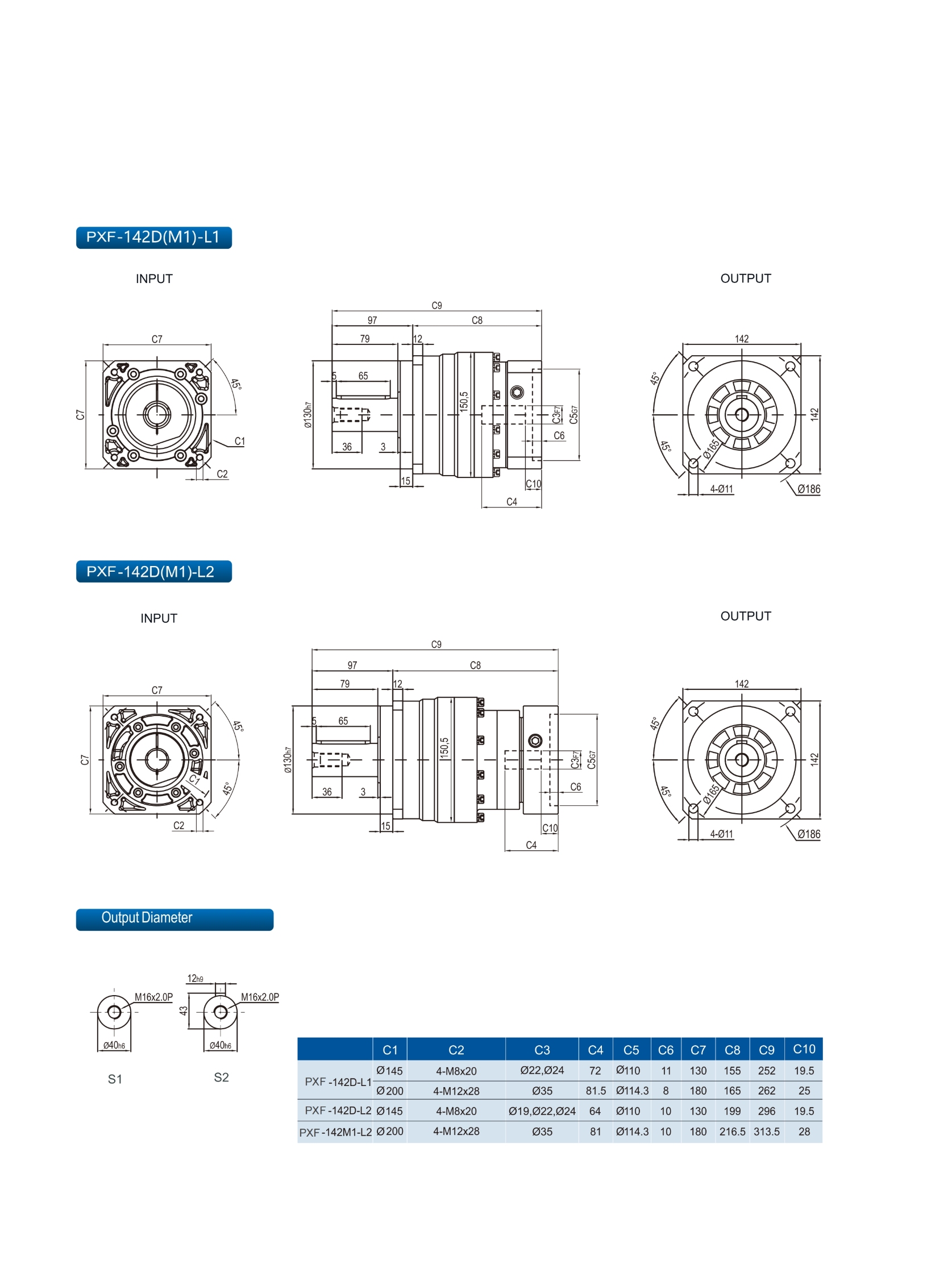

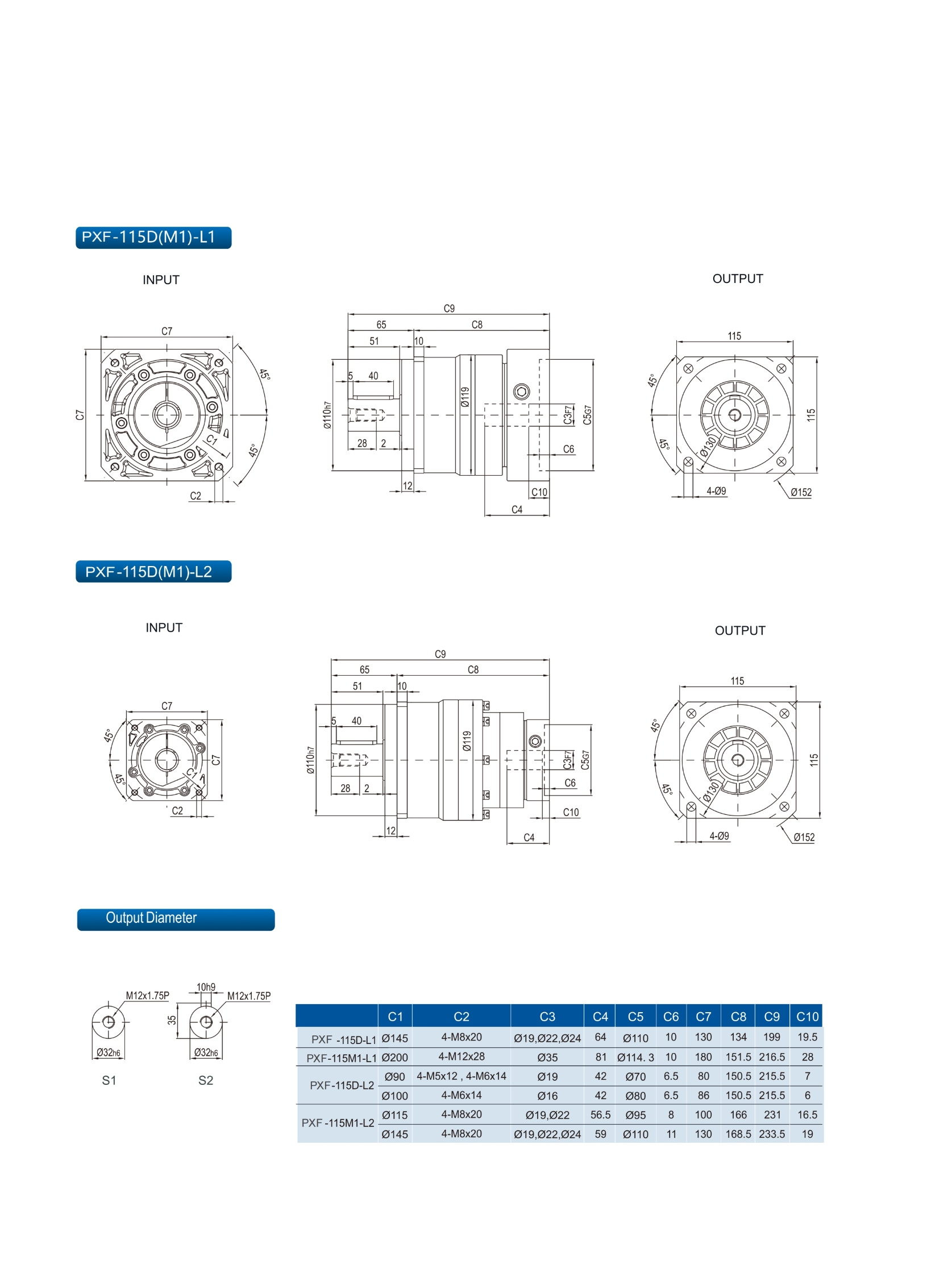

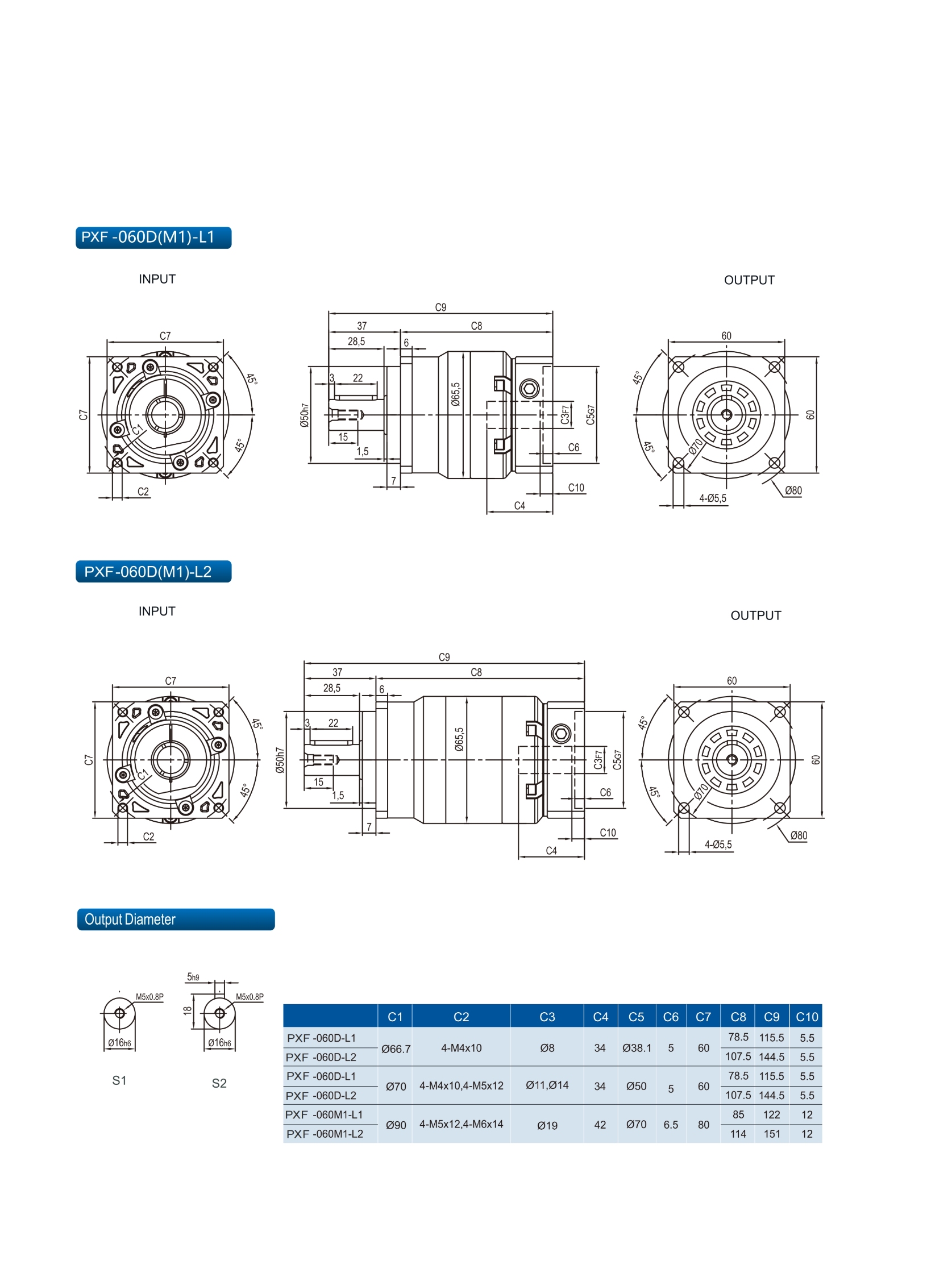

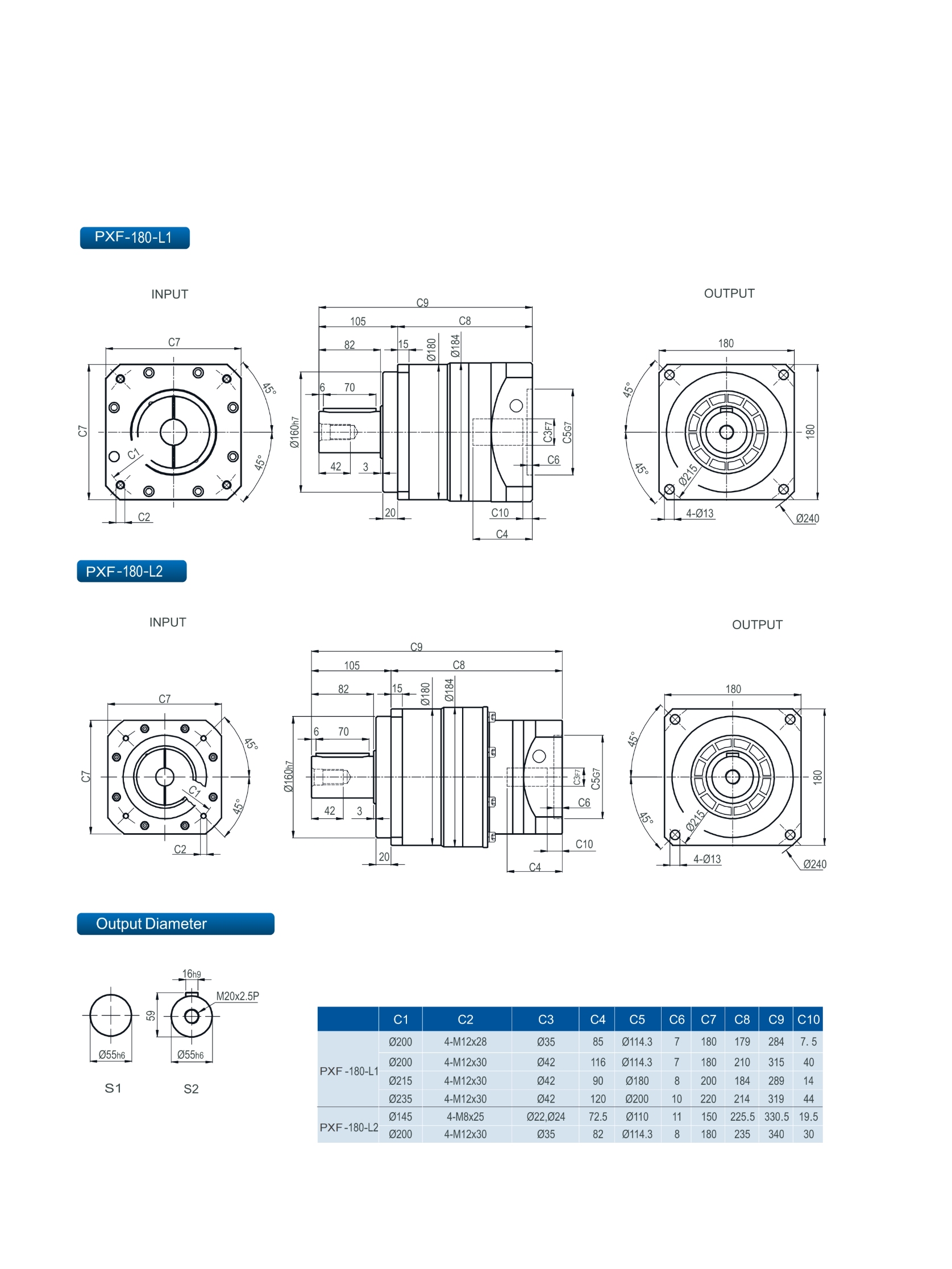

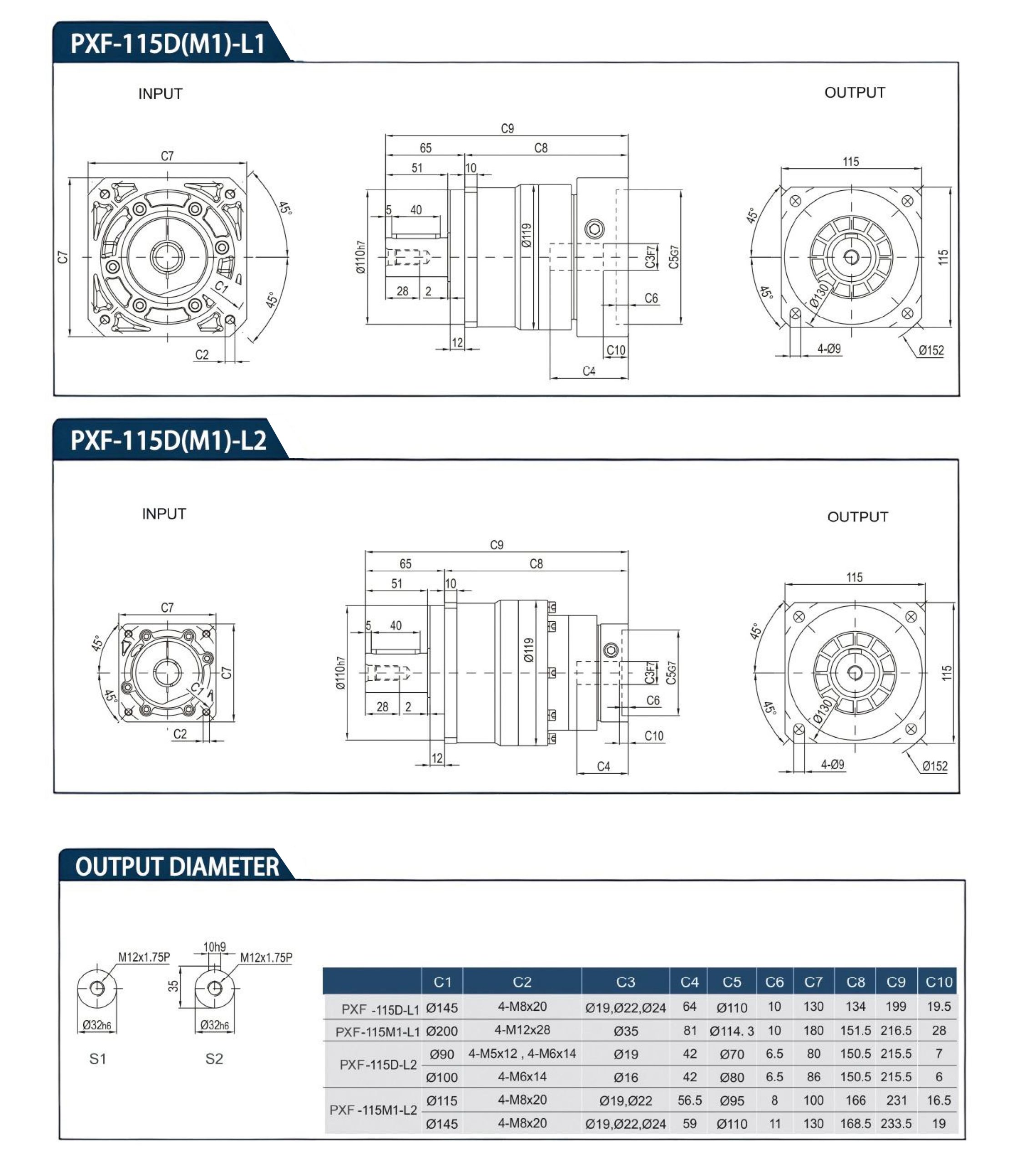

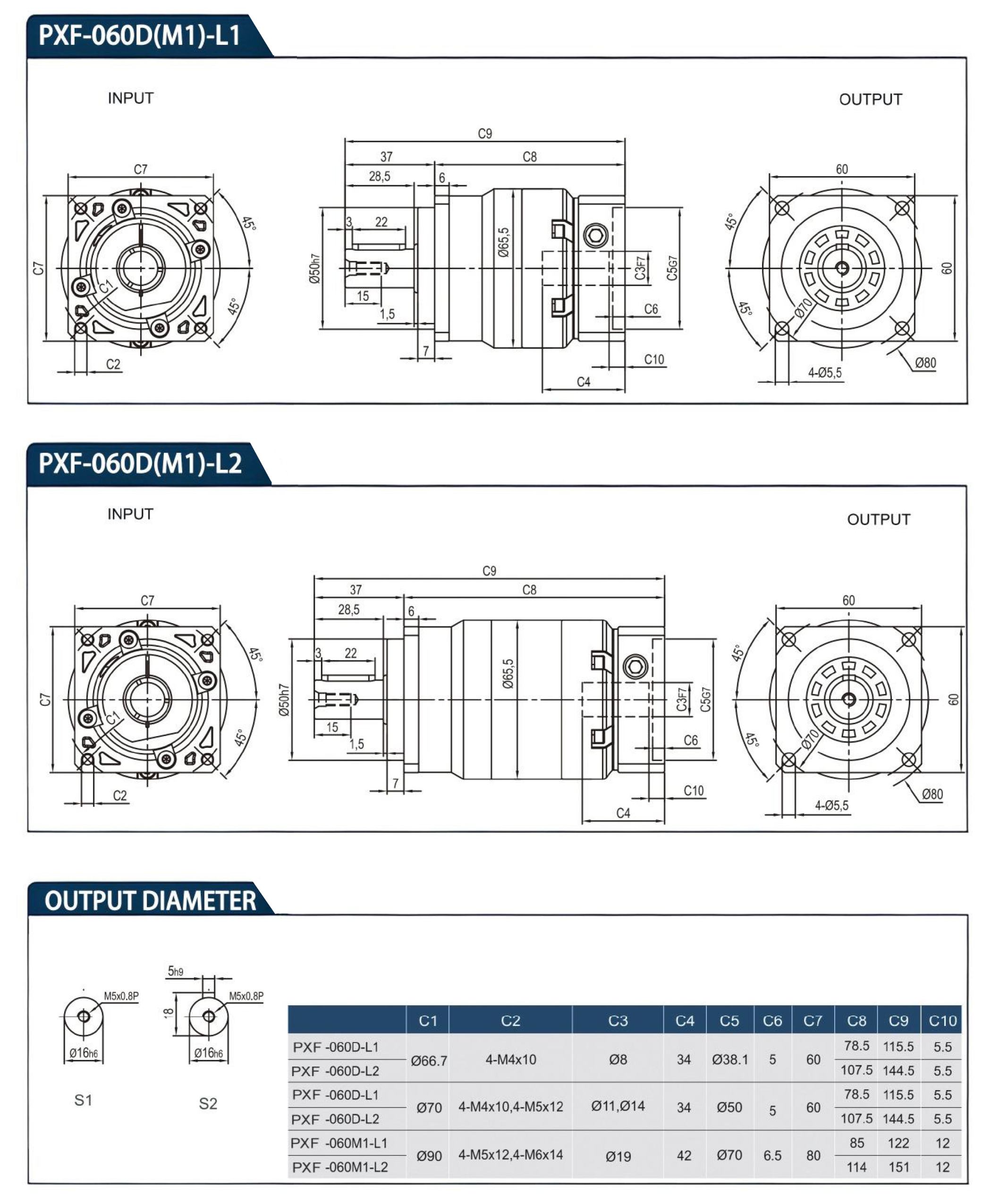

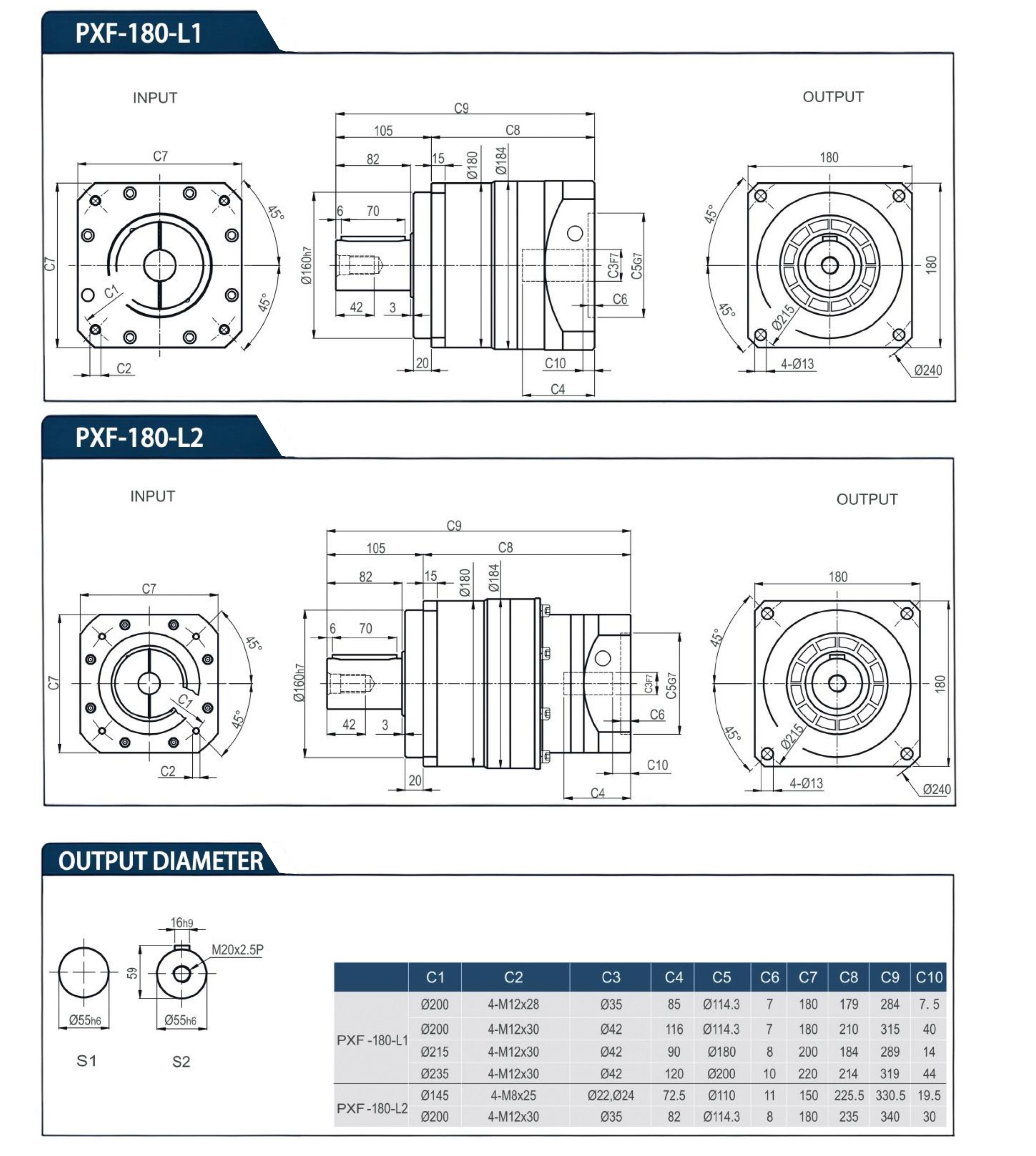

  Stage Ratio PXF042 PXF060 PXF090 PXF115 PXF142 PXF180 PXF220
Mass moment of inertia  kg ·cm² 1 3 0.03 0.16 0.61 3.25 9.21 28.98 69.61
4 0.03 0.14 0.48 2.74 7.54 23.67 54.37
5 0.03 0.13 0.47 2.71 7.42 23.29 53.27
6 0.03 0.13 0.45   7.25 22.75 51.72
7 0.03 0.13 0.45 2.82 7.14 22.48 50.97
8 0.03 0.13 44 2.58 7.07 22.59 50.84
10 0.03 0.13 0.44 2.57 7.03 22.51 50.56
2 12 0.03 0.03 0.13 0.47 2.71 7.42 23.29
15 0.03 0.03 0.13 0.47 2.71 7.42 23.29
20 0.03 0.03 0.13 0.47 2.71 7.42 23.29
25 0.03 0.03 0.13 0.47 2.71 7.42 23.29
30 0.03 0.03 0.13 0.47 2.71 7.42 23.29
35 0.03 0.03 0.13 0.47 2.71 7.42 23.29
40 0.03 0.03 0.13 0.47 2.71 7.42 23.29
50 0.03 0.03 0.13 0.44 2.57 7.03 22.51
60 0.03 0.03 0.13 0.44 2.57 7.03 22.51
70 0.03 0.03 0.13 0.44 2.57 7.03 22.51
80 0.03 0.03 0.13 0.44 2.57 7.03 22.51
100 0.03 0.03 0.13 0.44 2.57 7.03 22.51

Diverse output shaft options

 Keyed output shaft (parallel key)
 Non-keyed output shaft

Lubrication protocol

 Industrial-grade grease
 Food-safe lubricant
 Cryogenic lubricant



Surface treatment

 Standard coating
 Electrostatically applied paint

Advanced locking mechanisms

 Inertia-reduced clamping
 Shaft diameter-specific clamp



Drive input

 Motor interface customizatio
